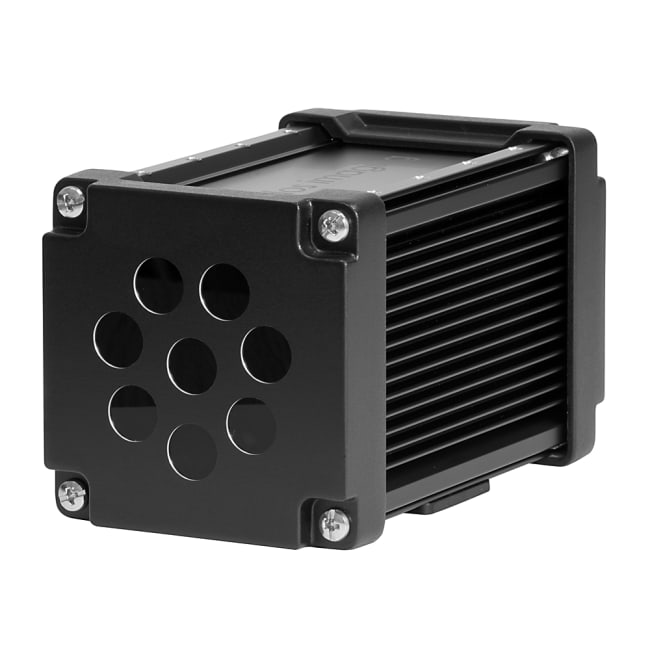

Swift-G GeniCam

Produktnummer: OI-G1480
Produktstatus:


inkl. mva.

3D Time Of Flight Camera, GenICam, 12V DC Power, 640x480 Pixels, 43x33Degree Field Of View

Time-Of-Flight 3D-kamera for maskiner

Fast, simple 3D

Ekstern lenke til produsentens produktside

SPECIFICATIONS

  Parameter Value
  Resolution 640×480 pixels
  Frame Rate up to 44fps
  Operating Range 0.5 – 6 meters
  Precision ~ 1 cm (typical, varies with return signal level)
  Field of View 43°x33° (H x V, measured in center)
  Illumination 7x LEDs @ 850 nm
  Output Data xyz point cloud (via SDK), range, active infrared
  Interface GigEVision and GenICam compatible
  Power 12 VDC / 20W (typical), 60W (peak)
  Software StarStream-Swift Demo Software (Windows)
  SDK .NET (Windows)/ C++ (documented with examples) W7/W8/W10/Linux (i686, x86_64, armhf, AArch64)
Spesifikasjoner
OI 3D Vision Swift-G 3D GenICam Time of Flight Camera12VDC power, 640x480 pixels, 43 x 33 deg Field of View
Lengde 19.304
Høyde 10.16
Livssyklus Active
