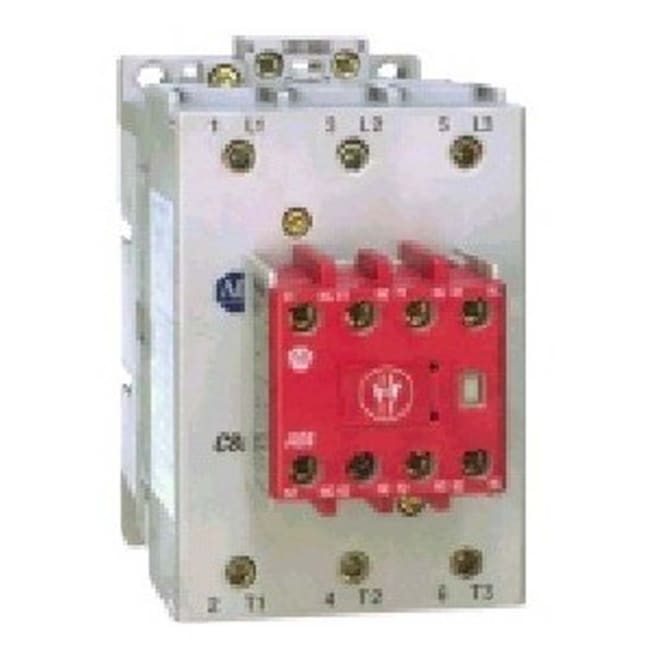

SIKKERH.KONT. 18,5KW-400V.24VDC LAV EFFEKT, 1NO+4NC
Produktnummer: 100S-C37EJ14BC
Produktstatus:
inkl. mva.
100S-C Safety Contactor, 37A, Line Side, 24V DC (w/Elec. Coil), 3 N.O., 1 N.O. 4 N.C., Bifuracated Contact
Safety Contactor, 37 A, IEC, 24V50/60Hz/24VDC Elec Cl, 3 Normally Open Power Poles, 24V DC Electronic, 1 NOC & 4 NCC, Line Side Coil Termination, Bifuracated Contact
Egenskaper for produkt/familie
- Reduces drop-out time to 18-23ms, a reduction of up to 50% compared to standard electronic coils
- Provides AC and DC operating coils
- Includes red contact housing for easy identification
- Offers a complete range of accessories
| Spesifikasjoner | |
|---|---|
| 3-Phase kW (50 Hz) 230V Rating | 11 |
| 3-Phase kW (50 Hz) 400V/415V Rating | 18.5/20 |
| 3-Phase kW (50 Hz) 500V Rating | 20 |
| 3-Phase kW (50 Hz) 690V Rating | 18.5 |
| Special Features | Bifurcated Contact |
| 3-Phase HP (60 Hz) 200V Rating | 10 |
| 3-Phase HP (60 Hz) 460V Rating | 25 |
| Contact Configuration | 1 N.O. 4 N.C. |
| 3-Phase HP (60 Hz) 230V Rating | 10 |
| 3-Phase HP (60 Hz) 575V Rating | 30 |
| Auxiliary Contact Type | Bifurcated Contact |
| Coil Termination | Line Side |
| No. of Power Poles | 3 N.O. |
| Rated Operating Current, AC-3 | 37A |
| Auxiliary Contact Configuration | 1 N.O. 4 N.C. |
| Coil Voltage | 24V DC Electronic Coil |
| Opprinnelsesland | CH |
| Tolltariffnummer | 85364190 |
| Lengde | 15.001 |
| Høyde | 5.999 |
| Livssyklus | Active |
