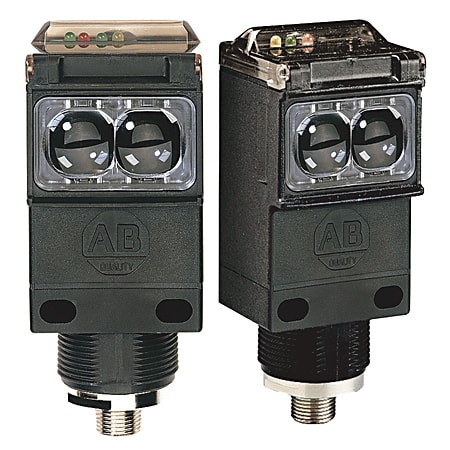

Series 9000 General Purpose Sensor
Produktnummer: 42GRP-9070-QD
Produktstatus:
inkl. mva.
Sensor, Standard ON/OFF, P-907, DC - NPN and PNP, 4-Pin DC Micro QD
Egenskaper for produkt/familie
- Fiber optic cable locking mechanism
- High operating margins (excess gain)
- Teach models available
- Wide range of supply voltages
| Spesifikasjoner | |
|---|---|
| Model Selection Information | Selection for Series 9000 Standard and Timing |
| Output | 10-40V DC, NPN/PNP Transistor |
| Type | Series 9000 Diffuse |
| Sensing Range | 4.2m (14ft) |
| Operating Voltage / Output Type | 10-40V DC, NPN/PNP Transistor |
| Sensing Mode | Long Range Diffuse |
| Maximum Sensing Distance | 4.2m (14ft) |
| Connection Type | 4-pin DC Micro (M12) QD |
| Output Energized | LO or DO selectable |
| Output Function | Standard (On / Off) |
| Lengde | 13.487 |
| Høyde | 5.994 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42g-in003_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Dimension Drawing (DWG/DXF) Filnavn: Series%209000.dwg Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: PHEL9K_PH.jpg Filtype: image/png |
Last ned | |
|
3D STEP Model (STP) Filnavn: Series9000_microqd Filtype: application/x-zip-compressed |
Last ned |
