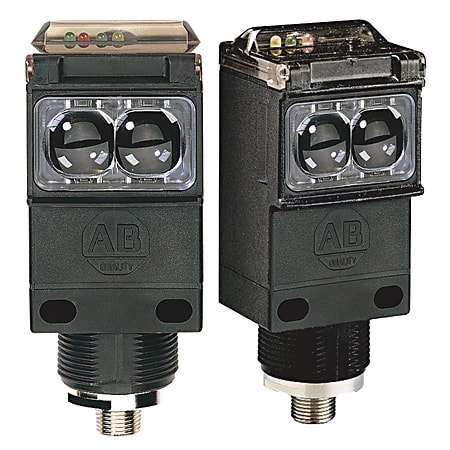

Series 9000 General Purpose Sensor
Produktnummer: 42GRF-9000
Produktstatus:
inkl. mva.
Photoelectric Sensor, 42G, Standard ON/OFF, Large Aperture Fiber Optic, Infrared LED, Selectable Light Operate - Dark Operate, NPN and PNP, Adjustable Sensitivity, 2 m Cable
Egenskaper for produkt/familie
- Teach models available
- High operating margins (excess gain)
- Wide range of supply voltages
- Fiber optic cable locking mechanism
| Spesifikasjoner | |
|---|---|
| Model Selection Information | Selection for Series 9000 Standard and Timing |
| Fiber Optic Cable | No Fiber Cable Selected |
| Sensing Range | Depends On Fiber Optic |
| Type | Series 9000 Fiber Optic |
| Output | 10-40V DC, NPN/PNP Transistor |
| Maximum Sensing Distance | Depends On Fiber Optic |
| Output Energized | LO or DO selectable |
| Output Function | Standard (On / Off) |
| Sensing Mode | Large Aperture Fiber Optic |
| Connection Type | 2m (6.5ft) 300V cable |
| Operating Voltage / Output Type | 10-40V DC, NPN/PNP Transistor |
| Lengde | 27.407 |
| Høyde | 6.096 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42g-in003_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Dimension Drawing (DWG/DXF) Filnavn: Fiber%20Optic%209000.dwg Filtype: image/vnd.dwg |
Last ned | |
|
3D STEP Model (STP) Filnavn: 42g_fo Filtype: application/x-zip-compressed |
Last ned | |
|
Photo Filnavn: PHEL9K_PH.jpg Filtype: image/png |
Last ned |
