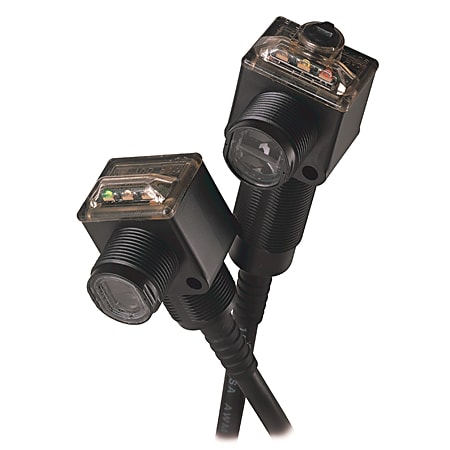

RightSight General Purpose Sensor
Produktnummer: 42EF-P2MPB-F4
Produktstatus:
inkl. mva.
RightSight Photosensor, 18 mm Cylindrical, Front Through Hole, Polarized Retroreflective, Visible Red, 3, 000 mm, Not Adjustable Sensitivity, PNP, DC Complementary LO/DO, 4 Pin Micro QD on Pigtail
Egenskaper for produkt/familie
- Short circuit protection across entire voltage range
- Universal 18 mm mounting at base and nose, and through-hole mounting
- Incorporates embedded IO-Link Technology in select sensors to help minimize downtime and increase productivity
- Applications include:
- Patented housing design with 1200 psi wash-down ratings
- 360° visible indicators
- 120;889D-F4AC-5
| Spesifikasjoner | |
|---|---|
| Model Selection Information | Selection for RightSight Standard |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| IO Link Enabled | Yes |
| Output Type | Source (PNP) |
| Operating Voltage/Mode | DC - 2 Complementary LO/DO Outputs |
| Voltage Rating | 10.8...30V DC |
| Response Time | 1 ms |
| Sensing Mode | Polarized Retroreflective |
| Maximum Sensing Distance | 3m (9.8ft) |
| Connection Type | 4-pin DC Micro QD on 152mm (6in) pigtail |
| Sensitivity Adjustment | No Adjustment |
| Light Source | Visible Red LED |
| Type | RightSight Pol. Retro |
| Sensing Range | 3m (9.8ft) |
| Sensing Beam | Visible Red LED |
| Lengde | 28.448 |
| Høyde | 3.683 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42ef-in003_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
AutoCad Drawing 2D (DXF) Filnavn: 42EF_DC.dxf Filtype: image/vnd.dxf |
Last ned | |
|
Photo Filnavn: PHEL42EF_ph.jpg Filtype: image/png |
Last ned | |
|
3D STEP Model (STP) Filnavn: 42EF_DC Filtype: application/x-zip-compressed |
Last ned |
