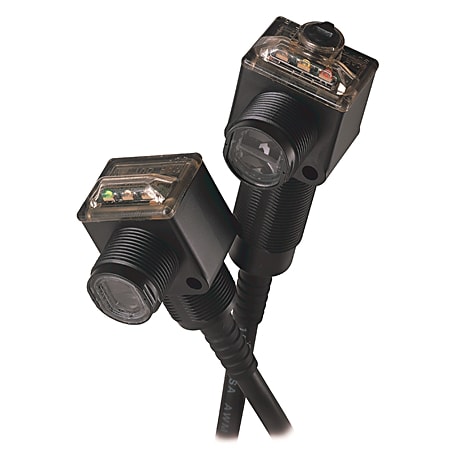

RightSight General Purpose Sensor
Produktnummer: 42EF-P2RCB-A2
Produktstatus:
inkl. mva.
RightSight Photosensor, 18 mm Cylindrical, Front Through Hole, Polarized Retroreflective, Visible Red, 3, 000 mm, Not Adjustable Sensitivity, Power MOSFET 2, AC/DC Light Operate, 2 m (6.5 ft) Cable
| Spesifikasjoner | |
|---|---|
| Connection Type | 2m (6.5ft) cable |
| Voltage Rating | 21.6...264V AC/DC |
| Operating Voltage/Mode | AC/DC - Light Operate Only |
| Maximum Sensing Distance | 3m (9.8ft) |
| IO Link Enabled | No |
| Output Type | Sink (NPN) Power Mosfet |
| Response Time | 8.3 ms |
| Sensitivity Adjustment | No Adjustment |
| Sensing Mode | Polarized Retroreflective |
| Light Source | Visible Red LED |
| Sensing Beam | Visible Red LED |
| Type | RightSight Pol. Retro |
| Sensing Range | 3m (9.8ft) |
| Model Selection Information | Selection for RightSight Standard |
| Lengde | 15.9 |
| Høyde | 5.791 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42ef-in003_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
AutoCad Drawing 2D (DXF) Filnavn: 42EF_AC.dxf Filtype: image/vnd.dxf |
Last ned | |
|
Photo Filnavn: PHEL42EF_ph.jpg Filtype: image/png |
Last ned | |
|
3D STEP Model (STP) Filnavn: 42EF_AC Filtype: application/x-zip-compressed |
Last ned |
