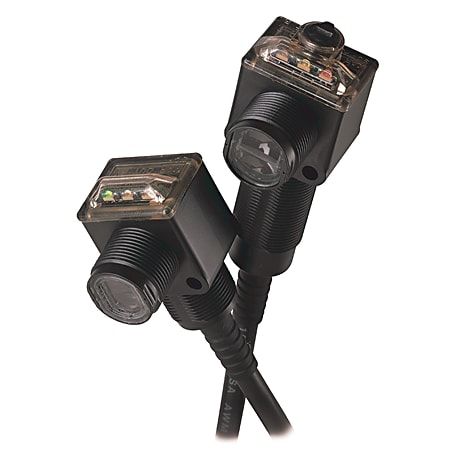

RightSight General Purpose Sensor
Produktnummer: 42EF-D2MPAK-F4
Produktstatus:
inkl. mva.
RightSight Photosensor, 18 mm Cylindrical, Front Through Hole, Standard Diffuse, Visible Red, 500 mm, Manually Adjustable, PNP, DC Complementary LO/DO, 4 Pin Micro QD on Pigtail
Egenskaper for produkt/familie
- Applications include:
- Incorporates embedded IO-Link Technology in select sensors to help minimize downtime and increase productivity
- Patented housing design with 1200 psi wash-down ratings
- Universal 18 mm mounting at base and nose, and through-hole mounting
- Short circuit protection across entire voltage range
- 360° visible indicators
- 120;889D-F4AC-5
| Spesifikasjoner | |
|---|---|
| Sensing Beam | Visible Red LED |
| Sensing Range | 500mm (20in) |
| Type | RightSight Diffuse |
| Model Selection Information | Selection for RightSight Standard |
| Sensing Mode | Standard Diffuse |
| Light Source | Visible Red LED |
| Maximum Sensing Distance | 500mm (20in) |
| Operating Voltage/Mode | DC - 2 Complementary LO/DO Outputs |
| Output Type | Source (PNP) |
| Sensitivity Adjustment | Manually Adjustable |
| Connection Type | 4-pin DC Micro QD on 152mm (6in) pigtail |
| Response Time | 1 ms |
| Voltage Rating | 10.8...30V DC |
| IO Link Enabled | Yes |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Lengde | 28.448 |
| Høyde | 3.175 |
| Livssyklus | Active |
