M-Bus Master / PROFIBUS DP Slave - Support 40 M-Bus Slaves

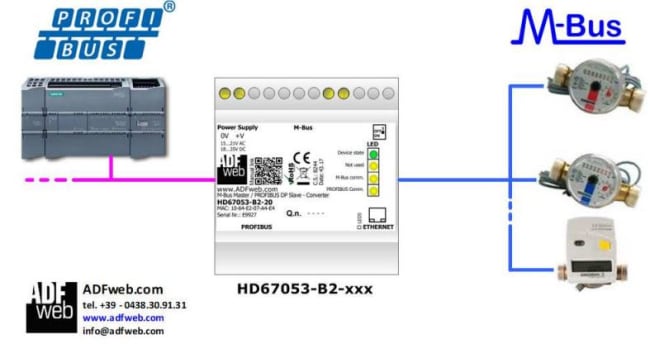

With this gateway you can monitor M-Bus meters like Engelmann, Amber-Wireless, Maddalena, Siemens, etc. from PROFIBUS network such as SIEMENES PLC, etc.

Technical Specifications:

Isolation:
Electrical isolation between PROFIBUS and M-Bus

Ports:
1xM-Bus; 1xRS232; 1xPROFIBUS

Data Rates M-Bus:
Up to 38400 bps

Data Rates PROFIBUS:
Auto baudrate

M-Bus Connector:
Terminal block

PROFIBUS Connector:
DB9 Female

Power supply:
15...21V AC ; 18...35V DC

Operating temperature:
-40°C to +85°C.

Dimensions:
106x58x95 (DxWxH)

Weight:
200g approx

Mechanical fixing:
35 mm DIN Rail

Software:
SW67053
http://www.adfweb.com/download/filefold/SW67053.zip
