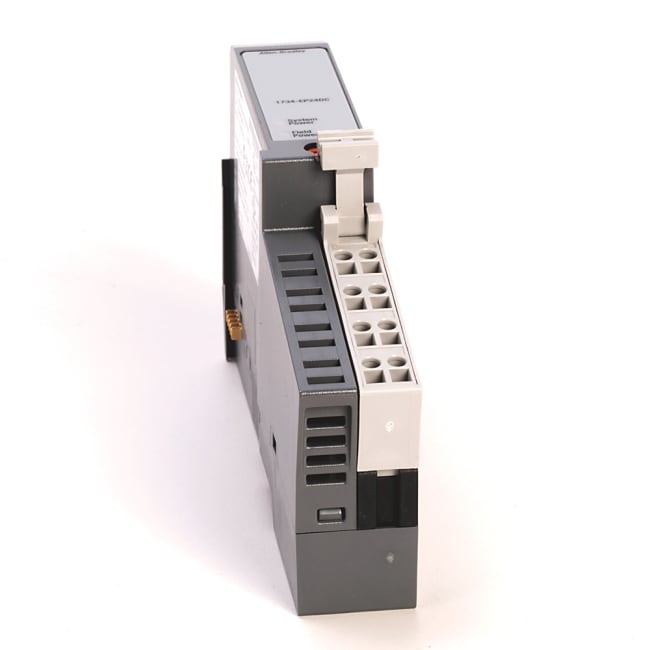

POINT I/O Extension Power Module

Produktnummer: 1734-EP24DC
Produktstatus:


inkl. mva.

24V DC Power/Bus Extension Module

Expansion Power Module, POINT I/O, 400ma @24VDC Input, 1.3 A @5VDC Output to POINTBus, Open Style, DIN Mounted

Egenskaper for produkt/familie

  • Removal and Insertion Under Power (RIUP) lets you replace modules while the system is in operation
  • Available with conformal coating
  • Auto Device Replacement (ADR) reduces downtime
  • Modular design lets you independently select the I/O, termination style, and network interface
  • Removable wiring system saves time and money during installation and troubleshooting
  • Comprehensive diagnostics and configurable features makes POINT I/O™ easy to apply
  • Modules slide together for easy install and uninstall for easier maintenance
  • Configurable modules
  • Mount horizontally or vertically, with no de-rating required
  • Add-on-Profiles in the Studio 5000 Logix Designer® application provide smooth integration into Integrated Architecture systems
Spesifikasjoner
Enclosure None (open-style)
Input Voltage 10...28.8V DC
Output Voltage 24V DC
Operating Temperature -20...55 °C (-4...131 °F)
Amperage Rating Horizontal mounting: 1 A at 5V DC for 10...19.2V input, 1.3 A @ 5V DC for 19.2...28.8V input, Vertical mounting: 1 A at 5V DC for 10...28.8V input
Special Features Standard
Sub Brand POINT
Mounting Din-rail
Application In-Cabinet
Type Power Extension Module
Power Supplies 24V DC Power/Bus Extension Module
Opprinnelsesland SG
Tolltariffnummer 85044090
Lengde 15.113
Høyde 6.223
Livssyklus Active
