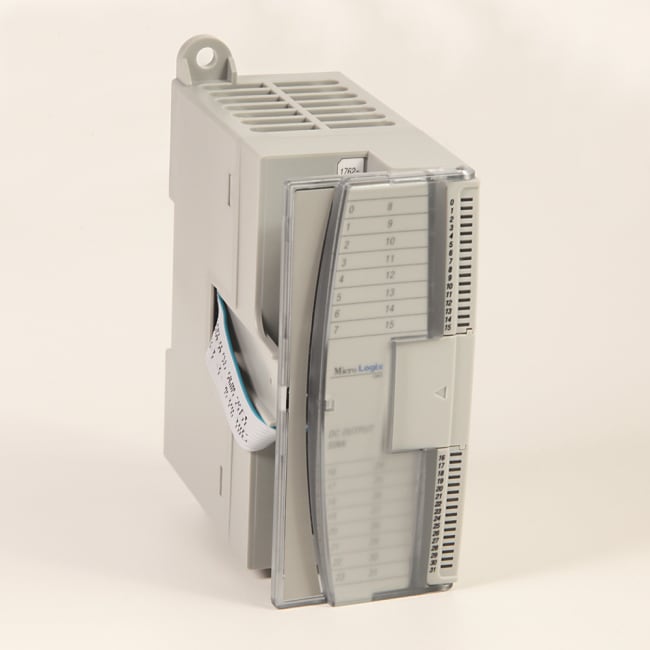

MicroLogix 32 Point D/O Module

Produktnummer: 1762-OB32T
Produktstatus:


inkl. mva.

1762 MicroLogix 1200 System, 32 Point 24 VDC Source Output Module

32 Point 24 VDC Source Output Module

Egenskaper for produkt/familie

  • Combination module with 8 inputs and 6 contact outputs
  • Network support includes EtherNet/IP™, DeviceNet™, and DH-485 (local only)
  • Feature-rich functionality addresses a wide range of applications
  • Integrated high-performance I/O bus
  • Combination module with 2 differential inputs and 2 single-ended outputs
  • Thermocouple module with 4 input channels plus a CJC sensor
  • AC and DC voltages
  • Small footprint reduces panel space
  • AC/DC relay output modules
  • Software keying prevents incorrect positioning within the system
  • Input module with 4 differential inputs
  • 8, 16, or 32 inputs or outputs
  • RTD module with 4 input channels
  • Digital, analog, and specialty I/O modules available
  • Label to record I/O terminal designations
  • Finger-safe terminal blocks for I/O wiring
  • Output module with 4 single-ended outputs
Spesifikasjoner
Sub Brand MicroLogix 1200
Enclosure IP20
Temperature Rating -20... 60 °C (-4...140 °F)
Depth 87
Standard c-UL-us CL1DIV2, CE, C-Tick, KCC
Height 90
I/O Status Indication LED
Type Discrete, Output
Consist Of Connectors
Width 40
Output 32 Point, 24V DC Source
Special Features Standard
I/O Isolation Isolated
Mounting DIN Rail, Panel Mount
Digital Output Modules 32 Point 24 VDC Source Output Module
Opprinnelsesland MY
Tolltariffnummer 85389099
Lengde 17.297
Høyde 5.69
Livssyklus Active
