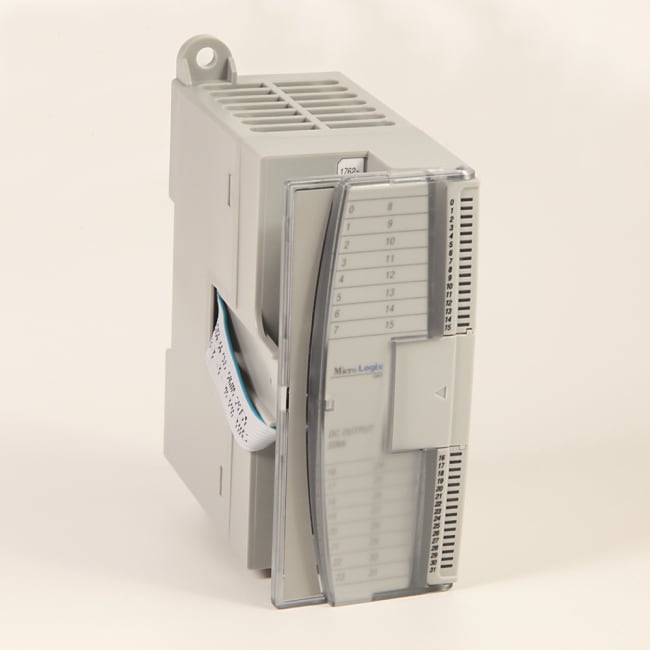

MicroLogix 16 Point D/O Module

Produktnummer: 1762-OB16
Produktstatus:


inkl. mva.

1762 MicroLogix 1200 System, 16 Point 24 VDC Source Output Module

16 Point 24 VDC Source Output Module

Egenskaper for produkt/familie

  • Software keying prevents incorrect positioning within the system
  • Digital, analog, and specialty I/O modules available
  • Feature-rich functionality addresses a wide range of applications
  • Combination module with 2 differential inputs and 2 single-ended outputs
  • RTD module with 4 input channels
  • Thermocouple module with 4 input channels plus a CJC sensor
  • Label to record I/O terminal designations
  • Output module with 4 single-ended outputs
  • AC/DC relay output modules
  • Network support includes EtherNet/IP™, DeviceNet™, and DH-485 (local only)
  • Integrated high-performance I/O bus
  • 8, 16, or 32 inputs or outputs
  • Combination module with 8 inputs and 6 contact outputs
  • Input module with 4 differential inputs
  • AC and DC voltages
  • Small footprint reduces panel space
  • Finger-safe terminal blocks for I/O wiring
Spesifikasjoner
Sub Brand MicroLogix 1200
Type Discrete, Output
Special Features Standard
Standard c-UL-us CL1DIV2, CE, C-Tick, KCC
I/O Isolation Isolated
I/O Status Indication LED
Height 90
Width 40
Depth 87
Enclosure IP20
Mounting DIN Rail, Panel Mount
Temperature Rating 0°C to 55°C (32°F to 131°F)
Output 16 Point, 24V DC Source
Digital Output Modules 16 Point 24 VDC Source Output Module
Opprinnelsesland MY
Tolltariffnummer 85389099
Lengde 16.688
Høyde 5.309
Livssyklus Active
