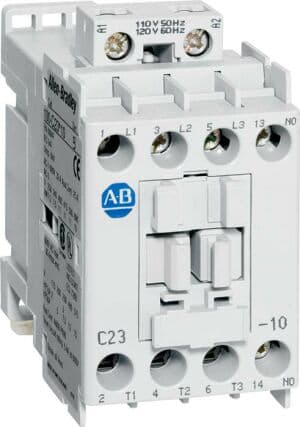

Egenskaper for produkt/familie
- RoHs compliant
- Includes electronic and pneumatic timing modules
- Offers common accessories for all contactor sizes
- Provides IP2X finger protection
- Provides reversible coil terminations (line or load side)
- Includes reversible coil terminations (line or load side)
- Provides front and side mounting of auxiliary contacts
- Includes built-in surge suppression with DC coils
- Includes space-saving coil-mounted control modules
- Meets IEC, UL, and CSA standards requirements
Spesifikasjoner | |
---|---|
Actual Life | Actual Life Cannot be Calculated (more information)... |
1-Phase HP (60 Hz) 115V Rating | 0.5 |
1-Phase HP (60 Hz) 230V Rating | 1.5 |
Coil Voltage | 110V 50Hz / 120V 60Hz |
Connection | Screw Terminals |
3-Phase HP (60 Hz) 575V Rating | 7.5 |
Package Quantity | 1 |
Rated Operating Current, AC-3 | 9A |
Coil Termination | Line Side |
Terminal Type | Screw Terminals |
Contact Configuration | 1 N.O. 0 N.C. Auxiliary Contact Configuration |
Electrical Standards | UL |
Utilization Category | AC-3 Squirrel-cage motor starting and stopping |
Right Side Auxiliary Contact | None |
100-C or 104-C Contactor | 1_ |
Front Mounted Auxiliary Contact | None |
Left Side Auxiliary Contact | None |
Interlock | None |
Lengde | 9.525 |
Høyde | 4.953 |
Livssyklus | Active |
Datablad | ||
---|---|---|
Spec Sheet Filnavn: 100-td013_-en-p.pdf Filtype: application/pdf |
Last ned |
Nedlastinger | ||
---|---|---|
3D STP (STEP) Model Filnavn: 100-C_FS0_AC_DCE Filtype: application/x-zip-compressed |
Last ned | |
2D Drawing (PDF) Filnavn: 100-C_FS0_AC_DCE.pdf Filtype: application/pdf |
Last ned | |
3D Mechanical Drawing (PDF) Filnavn: A-B.100-C_FS0_10_3D.pdf Filtype: application/pdf |
Last ned | |
MCS 100-C Contactor Photo Filnavn: 100C_23_Ph.jpg Filtype: image/png |
Last ned | |
Repair Parts List Filnavn: 100C-104C-100LC_Parts%20rp.pdf Filtype: application/pdf |
Last ned | |
2D Drawing (DWG/DXF) Filnavn: 100-C_FS0_AC_DCE.dxf Filtype: image/vnd.dxf |
Last ned | |
ABMSA010.dwg Filnavn: ABMSA010.dwg Filtype: image/vnd.dwg |
Last ned | |
ABMSA010.dxf Filnavn: ABMSA010.dxf Filtype: image/vnd.dxf |
Last ned | |
ABMSA010.pdf Filnavn: ABMSA010.pdf Filtype: application/pdf |
Last ned | |
ABMSA010.wmf Filnavn: ABMSA010 Filtype: application/x-msmetafile |
Last ned | |
ABMSA011.dwg Filnavn: ABMSA011.dwg Filtype: image/vnd.dwg |
Last ned | |
ABMSA011.dxf Filnavn: ABMSA011.dxf Filtype: image/vnd.dxf |
Last ned | |
ABMSA011.pdf Filnavn: ABMSA011.pdf Filtype: application/pdf |
Last ned | |
ABMSA011.wmf Filnavn: ABMSA011 Filtype: application/x-msmetafile |
Last ned |
