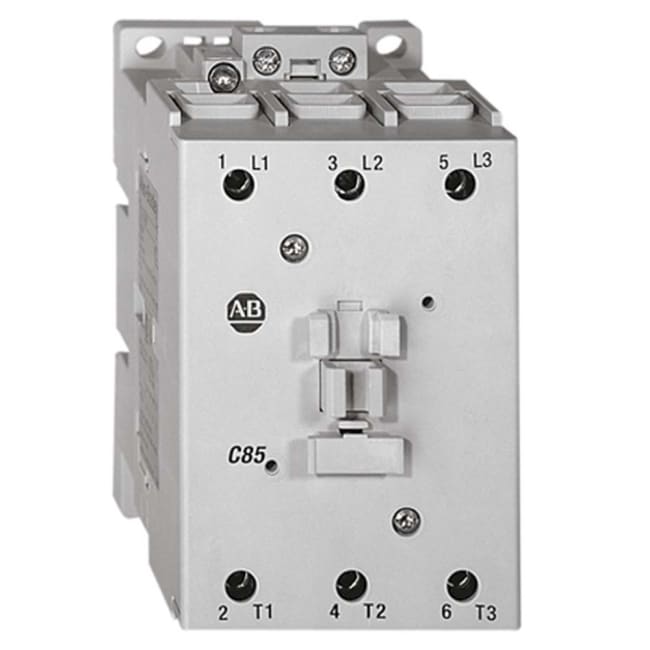

KONTAKTOR 72A AC3. 24 VDC SPOLE M/DIODE
inkl. mva.
100-C IEC Contactor, 24V DC w/ Integrated Diode, Screw Terminals, Line Side, 72A, 0 N.O. 0 N.C. Auxiliary Contact Configuration, Single Pack
Egenskaper for produkt/familie
- Includes built-in surge suppression with DC coils
- Includes reversible coil terminations (line or load side)
- Includes space-saving coil-mounted control modules
- Includes electronic and pneumatic timing modules
- RoHs compliant
- Meets IEC, UL, and CSA standards requirements
- Offers common accessories for all contactor sizes
- Provides front and side mounting of auxiliary contacts
- Provides IP2X finger protection
- Provides reversible coil terminations (line or load side)
Spesifikasjoner | |
---|---|
Connection | Screw Terminals |
3-Phase kW (50 Hz) 230V Rating | 22 |
3-Phase kW (50 Hz) 400V/415V Rating | 40 |
3-Phase kW (50 Hz) 500V Rating | 45 |
3-Phase kW (50 Hz) 690V Rating | 40 |
1-Phase HP (60 Hz) 230V Rating | 15 |
3-Phase HP (60 Hz) 200V Rating | 20 |
3-Phase HP (60 Hz) 230V Rating | 25 |
3-Phase HP (60 Hz) 460V Rating | 50 |
3-Phase HP (60 Hz) 575V Rating | 60 |
Terminal Type | Screw Terminals |
Rated Operating Current, AC-3 | 72A |
Coil Voltage | 24V DC w/ Integrated Diode |
No. of Poles | 3 Poles |
Coil Termination | Line Side |
Contact Configuration | 0 N.O. 0 N.C. Auxiliary Contact Configuration |
Package Quantity | 1 |
Electrical Standards | UL |
Utilization Category | AC-3 Squirrel-cage motor starting and stopping |
Actual Life | Actual Life Cannot be Calculated (more information)... |
100-C or 104-C Contactor | None |
Front Mounted Auxiliary Contact | None |
Left Side Auxiliary Contact | None |
Right Side Auxiliary Contact | None |
Interlock | None |
Opprinnelsesland | PL |
Tolltariffnummer | 85364190 |
Lengde | 8.89 |
Høyde | 13.995 |
Livssyklus | Active |
