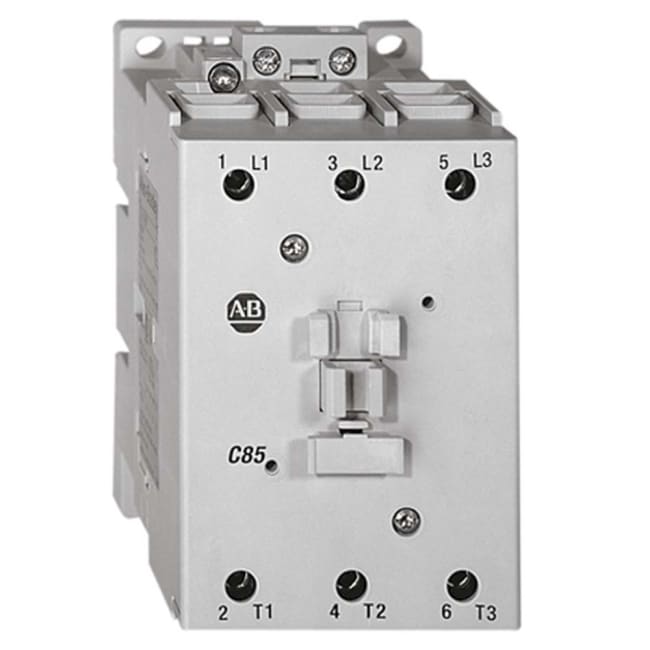

KONTAKTOR 4-POL. 85A AC-3. 24VAC SPOLE
Produktnummer: 100-C90KJ400
Produktstatus:
inkl. mva.
100-C IEC Contactor, 24V 50/60Hz, Screw Terminals, Line Side, 85A, 4 N.O. 0 N.C. Main Contact Configuration, Single Pack
Contactor, 90 A, IEC, 24V 50/60 Hz, AC, 4 Normally Open Poles, 24V AC 50/60 Hz, No Contact Configuration, Single Pack, Line Side Coil Termination, Screw Terminals, Motor Load
| Spesifikasjoner | |
|---|---|
| Actual Life | Actual Life Cannot be Calculated (more information)... |
| Utilization Category | AC-3 Squirrel-cage motor starting and stopping |
| Electrical Standards | UL |
| Contact Configuration | 4 N.O. 0 N.C. Main Contact Configuration |
| Coil Voltage | 24V 50/60Hz |
| Rated Operating Current, AC-3 | 85A |
| Terminal Type | Screw Terminals |
| No. of Poles | 4 Poles |
| Coil Termination | Line Side |
| Package Quantity | 1 |
| Front Mounted Auxiliary Contact | None |
| 100-C or 104-C Contactor | None |
| Right Side Auxiliary Contact | None |
| Interlock | None |
| Left Side Auxiliary Contact | None |
| Opprinnelsesland | PL |
| Tolltariffnummer | 85364190 |
| Lengde | 14.3 |
| Høyde | 10.693 |
| Livssyklus | Active |
| Nedlastinger | ||
|---|---|---|
|
3D Mechanical Drawing (PDF) Filnavn: A-B.100-C_FS3_400_3D.pdf Filtype: application/pdf |
Last ned | |
|
3D STP (STEP) Model Filnavn: 100-C90_AC_DC Filtype: application/x-zip-compressed |
Last ned | |
|
MCS 100-C Contactor Photo Filnavn: 100C85_Photo.jpg Filtype: image/png |
Last ned | |
|
Repair Parts List Filnavn: 100C-104C-100LC_Parts%20rp.pdf Filtype: application/pdf |
Last ned |
