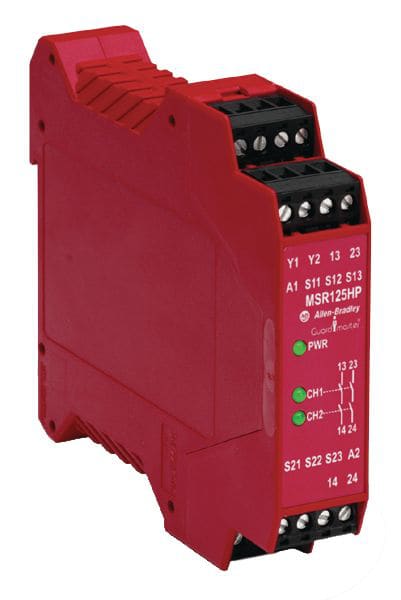

Guardmaster MSR125HP Safety Relay 115VAC
Produktnummer: 440R-D23169
Produktstatus:
inkl. mva.
Safety Relay, MSR125HP, 115VAC, Removable, 22.5MM Housing Width, 0.5sec, 2 Safety Output, CAT 4 Rated
Egenskaper for produkt/familie
- Provides logic units for monitoring and interfacing two-hand control devices with a safety-related circuit
- Compatible with mechanical switches and the Bulletin 800Z Zero-Force Touch Buttons™ (based on model)
- Offers microprocessor-based models with safety-rated, solid-state outputs
| Spesifikasjoner | |
|---|---|
| Relay Model Selected | MSR125HP |
| Output | 2 N.O. |
| Power Supply | 115V AC |
| Removable Terminals | Removable |
| Inputs | Two-Hand Control |
| Immediate Safety Outputs | 2 N.O. |
| Reset | Automatic/Manual Reset |
| Delayed Safety Outputs | N/A |
| Immediate Auxiliary Outputs | N/A |
| Lengde | 10.389 |
| Høyde | 3.099 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 440r-in058_-mu-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: MSR125HP.jpg Filtype: image/png |
Last ned | |
|
2-Dimensional Drawing (PDF) Filnavn: MSR125HP.pdf Filtype: application/pdf |
Last ned | |
|
2-Dimensional Drawing (DXF) Filnavn: MSR125HP.dwg Filtype: image/vnd.dwg |
Last ned |
