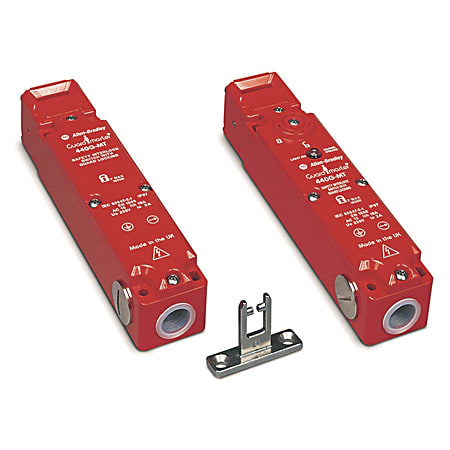

440G-MT Guard Locking Solenoid Switch
Produktnummer: 440G-MT47074
Produktstatus:
inkl. mva.
Guard Locking Switch - 440G-MT Solenoid: Solenoid Voltage: 110V AC/DC, Contacts(Safety and Aux): 3 Normally Closed, 1 Normally Open, Actuator: Fully-Flex, Conduit Entry: 1/2 in NPT Adapter
Guardlock Switch, 440G-MT, Power To Release, 110V ACDC, 3 N.C. Safety, 1 N.O Aux, Break Before Make, 3 N.C. Safety Contacts, 1 N.O. Auxillary Contact, Fully Flex, Guardlocking Switch, M20 Conduit, 1/2in. NPT adptr, Die Cast Alloy (red)
Egenskaper for produkt/familie
- Mechanical lock
- High locking force of 1600 N (360 lb)
- Heavy-duty die-cast alloy housing
- 100;889D-F5NC-5
- 100;889D-F8NB-5
| Spesifikasjoner | |
|---|---|
| BBM only | Break Before Make |
| Product Family | 440G-MT Solenoid |
| Model Type | Power to Release |
| Contacts (Safety/Auxiliary) | 3 Normally Closed, 1 Normally Open |
| Solenoid Contacts | None |
| Solenoid Voltage | 110V AC/DC |
| Actuator | Fully-Flex |
| Conduit Entry / Connection Type | 1/2 in NPT Adapter |
| Holding Force (Fzh) | 1500N (337 lbs) |
| Cordsets | DC Micro (M12), Female, Straight, 8-Pin, PVC Cable, Red, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Cordsets | DC Micro (M12), Female, Straight, 5-Pin, PVC Cable, Red, Unshielded, IEC Color Coded, No Connector, 5 meter (16.4 feet) |
| Lengde | 24.105 |
| Høyde | 5.994 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 440g-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3-Dimensional STEP model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
|
Photo Filnavn: en-US Filtype: image/png |
Last ned | |
|
2-Dimensional Drawing (DXF) Filnavn: en-US Filtype: image/vnd.dwg |
Last ned |
