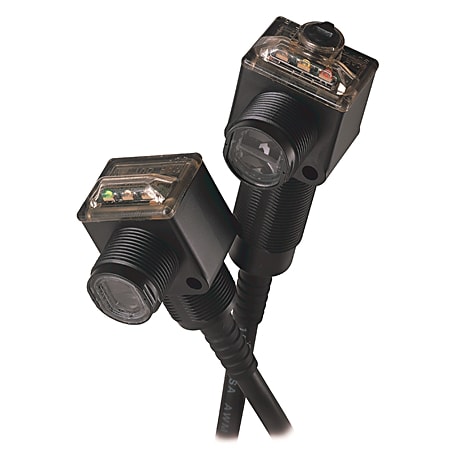

RightSight General Purpose Sensor
Produktnummer: 42EF-U2KBB-F4
Produktstatus:
inkl. mva.
PHOTOSWITCH Photoelectric Sensor, RightSight, Retroflective, Red, DC - Dark Operate, Both Sink (NPN) and Source (PNP), 4-pin DC Micro QD on 152mm (6in) pigtail
RightSight Photosensor, 18 mm Cylindrical, Front Through Hole, Standard Retroreflective, Visible Red, 4, 500 mm, Not Adjustable Sensitivity, NPN & PNP W/ SCP, DC Dark Operate, 4 Pin Micro QD on Pigtail
Egenskaper for produkt/familie
- Patented housing design with 1200 psi wash-down ratings
- Incorporates embedded IO-Link Technology in select sensors to help minimize downtime and increase productivity
- Applications include:
- Short circuit protection across entire voltage range
- 360° visible indicators
- Universal 18 mm mounting at base and nose, and through-hole mounting
- 120;889D-F4AC-5
| Spesifikasjoner | |
|---|---|
| Sensing Beam | Visible Red LED |
| Sensing Range | 4.5m (14.7ft) |
| Type | RightSight Retroreflective |
| Model Selection Information | Selection for RightSight Standard |
| Sensing Mode | Retroreflective |
| Light Source | Visible Red LED |
| Maximum Sensing Distance | 4.5m (14.7ft) |
| Operating Voltage/Mode | DC - Dark Operate |
| Output Type | Both Sink (NPN) and Source (PNP) |
| Sensitivity Adjustment | No Adjustment |
| Connection Type | 4-pin DC Micro QD on 152mm (6in) pigtail |
| Response Time | 1 ms |
| Voltage Rating | 10.8...30V DC |
| IO Link Enabled | No |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Opprinnelsesland | DO |
| Tolltariffnummer | 85414090 |
| Lengde | 20.32 |
| Høyde | 2.54 |
| Livssyklus | Active |
