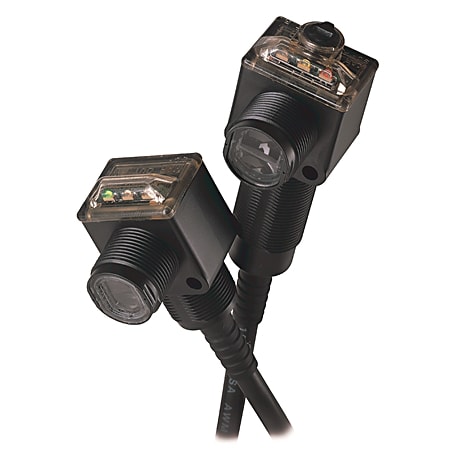

RightSight General Purpose Sensor
inkl. mva.
PHOTOSWITCH Photoelectric Sensor, RightSight, Background Suppression, Infred, DC - 2 Complementary LO/DO Outputs, Source (PNP), 4-pin DC Micro QD on 152mm (6in) pigtail
Egenskaper for produkt/familie
- 120;889D-F4AC-5
- Incorporates embedded IO-Link Technology in select sensors to help minimize downtime and increase productivity
- Short circuit protection across entire voltage range
- Applications include:
- Universal 18 mm mounting at base and nose, and through-hole mounting
- Patented housing design with 1200 psi wash-down ratings
- 360° visible indicators
Spesifikasjoner | |
---|---|
Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
Maximum Sensing Distance | 100mm (3.9in) |
Sensitivity Adjustment | No Adjustment |
Light Source | Infrared LED |
Output Type | Source (PNP) |
Connection Type | 4-pin DC Micro QD on 152mm (6in) pigtail |
Voltage Rating | 10.8...30V DC |
Sensing Mode | Background Suppression |
Response Time | 1 ms |
IO Link Enabled | No |
Operating Voltage/Mode | DC - 2 Complementary LO/DO Outputs |
Model Selection Information | Selection for RightSight Standard |
Sensing Beam | Infrared LED |
Sensing Range | 100mm (3.9in) |
Type | RightSight Background Suppression |
Opprinnelsesland | DO |
Tolltariffnummer | 85414090 |
Lengde | 15.088 |
Høyde | 2.997 |
Livssyklus | Active |
Datablad | ||
---|---|---|
Spec Sheet Filnavn: 42ef-in003_-en-p.pdf Filtype: application/pdf |
Last ned |
Nedlastinger | ||
---|---|---|
Photo Filnavn: PHEL42EF_ph.jpg Filtype: image/png |
Last ned | |
3D STEP Model (STP) Filnavn: 42EF_DC Filtype: application/x-zip-compressed |
Last ned | |
AutoCad Drawing 2D (DXF) Filnavn: 42EF_DC.dxf Filtype: image/vnd.dxf |
Last ned |
