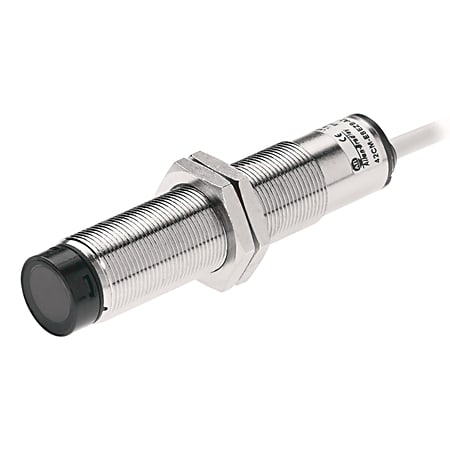

Cylindrical 18 mm Metal Photoelectric Sensor
Produktnummer: 42CM-D1MPAL-D4
Produktstatus:
inkl. mva.
PHOTOSWITCH Photoelectric Sensor, 400mm (15.6in), Standard Diffuse, Source (PNP), 4-pin DC Micro QD
18 mm Metal Sensor, 18 mm Cylindrical, Standard Diffuse, Infrared, Manually Adjustable, PNP, DC Complementary LO/DO, 4 Pin Micro Quick Disconnect, Metal, 18mm Mount, 2.00 ms, 3 mm Minimum Sensing Distance, 400 mm Operating Distance, 300 mm Sensing Distance, 4-pin DC Micro
Egenskaper for produkt/familie
- 70;889D-F4AC-5
| Spesifikasjoner | |
|---|---|
| Output | Source (PNP) |
| Sensing Range | 400mm (15.6in) |
| Connection | 4-pin DC Micro QD |
| Sensing Beam | Infrared LED |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Connection Type | 4-pin DC Micro QD |
| Output Type | Source (PNP) |
| Sensitivity Adjustment | Manually Adjustable |
| Maximum Sensing Distance | 400mm (15.6in) |
| Sensing Mode | Standard Diffuse |
| Light Source | Infrared LED |
| Opprinnelsesland | IT |
| Tolltariffnummer | 85414090 |
| Lengde | 9.3 |
| Høyde | 3.99 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42cm-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: PHEL42CM_PH.jpg Filtype: image/png |
Last ned | |
|
2D Dimension Drawing (DWG/DXF) Filnavn: 42CM.dwg Filtype: image/vnd.dwg |
Last ned | |
|
3D STEP Model (STP) Filnavn: 42cm_qd Filtype: application/x-zip-compressed |
Last ned |
