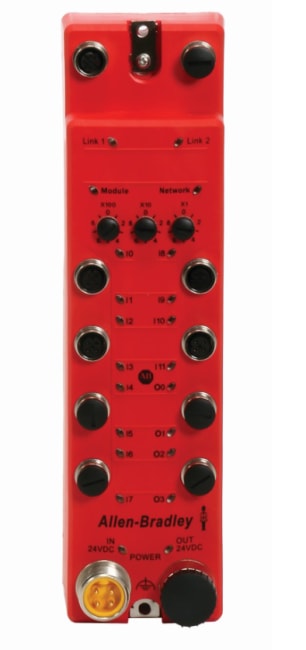

EtherNet/IP Safety ArmorBlock Input Module 8 Inputs, IP67

Produktnummer: 1732ES-IB8XOB8
Produktstatus:


inkl. mva.

EtherNet/IP Safety ArmorBlock Input Module 8 Inputs, 8 Solid State Sourcing Outputs, IP67 Rating

Ethernet/IP Safety ArmorBlock Module, 8 Inputs, 8 Test Outputs, 8Sourcing Outputs, IP67, 24VDC

Egenskaper for produkt/familie

  • Provides PLd-rated, single channel safety inputs and PLe-rated, dual channel, safety inputs; safety outputs rated up to PLe
  • Includes dual Ethernet ports for Linear and Device Level Ring topologies
  • Provides standardized M12 connectors to wire your field devices
  • Mounts on the machine with an IP65-rated package for dust and wash-down protection
  • Provides rotary switches to set the IP address
  • Used only with GuardLogix®, Compact GuardLogix, and Armor™ GuardLogix, configurable with a module-specific profile in Studio 5000 Logix Designer® software
  • Available in bipolar and sourcing safety output configurations
Spesifikasjoner
Termination Type DC Micro (M12)
Number of Inputs and Outputs 8 Sinking Inputs, 8 Solid State Sourcing Outputs
Network Connection EtherNet/IP
I/O Type Input/Output Combo Module
Rating IP67
Communication EtherNet/IP
Application Input Sink, Solid State Output Module
Opprinnelsesland US
Tolltariffnummer 85389099
Lengde 13.081
Høyde 10.16
Livssyklus Active
