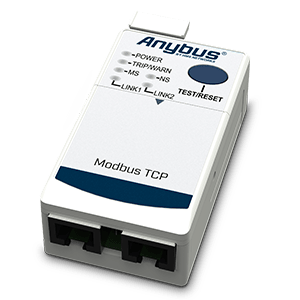

E300 Modbus-TCP Communication module

Produktnummer: 028810-B


inkl. mva.

The Anybus-E300-MBTCP Communication Module is designed to work with the Allen-Bradley E300 Electronic Overload Relay from Rockwell Automation.  When an E300 needs to be integrated with a Distributed Control System (DCS) that uses Modbus TCP as its communication backbone, this module enables the E300 to function as a Server node on the Modbus TCP network.  The Modbus TCP Communication Module allows the DCS to send control commands to the E300 and monitor the device via Ethernet.  Modbus TCP is commonly used in many industries, such as water and wastewater facilities, heavy industries such as Oil and Gas, Chemicals and Mining, as well as others.

FEATURES & BENEFITS

  • Connects directly to the E300 Relay
  • Modbus TCP server functionality
  • Web-based configuration interface
  • 2-port Ethernet switch



TECHNICAL SPECIFICATIONS

Ethernet connector

RJ45 x 2

Power consumption

Typical: 220 mA @ 5 VDC

Storage temperature

-40 to +85 °C

Operating temperature (open)

-20 to +55 °C

Operating temperature (enclosed)

-20 to +40 °C

Humidity

EN 600068-2-78: Damp heat, +40°C, 92% humidity for 56 days

EN 60068-2-30: Damp heat, +25°C – +40°C, 93% RH, 21 cycles

Cooling Method

Natural convection

Vibration

IEC 68-2-6: 5 G operating, 5 G non-operating

Shock

IEC 68-2-27: 30 G

Protection class

IP20

Product weight

85 g

Dimensions

32 x 44,8 x 89,3 mm (H x W x D)

Modbus TCP connections

Up to 4 simultaneous connections

Modbus TCP port number

502
