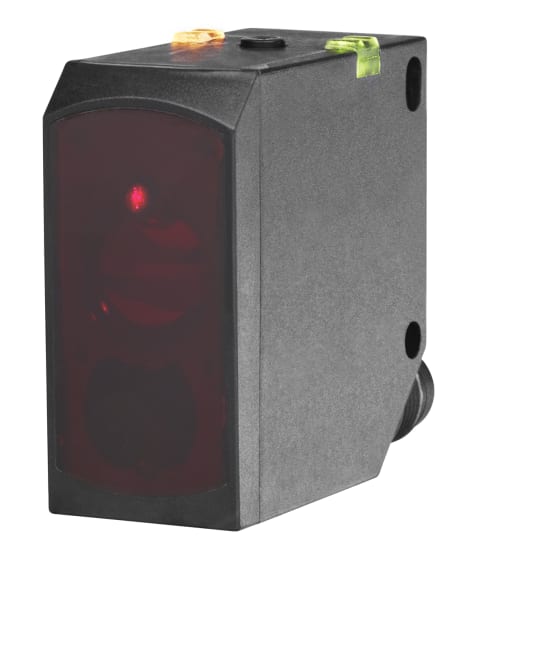

DistanceMeasurementSensor, Background Reflection,0.06..5 m
Produktnummer: 45DMS-B8LGT1-D5
Produktstatus:
inkl. mva.
Photoelectric Sensor, Distance Measurement, Background Suppression, Class 1 Laser, Teachable Light Operate or Dark Operate, 1 x Auto PNP or NPN with IO-Link and 1 x 4-20 mA output, Push Button Teach, 5 m Range, 5-pin M12 Integral QD
Egenskaper for produkt/familie
- Includes Class 1 Eye Safe Laser
- Provides accuracy:
- Ideal for precision distance measurements
- Includes IP67 and IP69k rated enclosures
- Includes embedded IO-Link communication protocol
- Offers sensing ranges:
- Includes a 3-in-1 sensing mode that can be easily interchanged in one unit for distance measurements, background suppression, and background reflection
| Spesifikasjoner | |
|---|---|
| Output Type | Auto PNP or NPN (IO-Link) and 4-20 mA Output |
| Light Source | Class 1 Laser |
| Connection Types | Integral 5 pin DC Micro (M12) |
| IO-Link Enabled | Yes |
| Bulletin Number | 45DMS Distance Measurement Sensor |
| Sensing Range | 0.1 ... 5 m |
| Sensing Mode | Background Reflection |
| Lengde | 14.351 |
| Høyde | 4.953 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 45dms-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D STEP Model (STP) Filnavn: 45DMS Filtype: application/x-zip-compressed |
Last ned | |
|
2D drawing (DWG/DXF) Filnavn: 45DMS_2D.dwg Filtype: image/vnd.dwg |
Last ned | |
|
2D drawing PDF Filnavn: 45DMS_2D.pdf Filtype: application/pdf |
Last ned | |
|
Photo Filnavn: 45DMS_3QtrLeft_back_LightsON.jpg Filtype: image/png |
Last ned |
