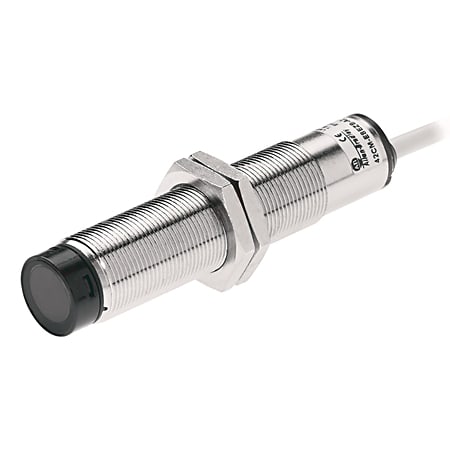

Cylindrical 18 mm Metal Photoelectric Sensor
Produktnummer: 42CM-D1MNAL-A2
Produktstatus:
inkl. mva.
18 mm Metal Sensor, 18 mm Cylindrical, Standard Diffuse, Infrared, Manually Adjustable, NPN, DC Complementary LO/DO, 2 m (6.5 ft) Cable, Metal, 18mm Mount, 2.00 ms, 3 mm Minimum Sensing Distance, 400 mm Operating Distance, 300 mm Sensing Distance
| Spesifikasjoner | |
|---|---|
| Maximum Sensing Distance | 400mm (15.6in) |
| Sensing Mode | Standard Diffuse |
| Sensitivity Adjustment | Manually Adjustable |
| Output Type | Sink (NPN) |
| Connection Type | 2m (6.5ft) cable |
| Light Source | Infrared LED |
| Sensing Range | 400mm (15.6in) |
| Sensing Beam | Infrared LED |
| Output | Sink (NPN) |
| Connection | 2m (6.5ft) cable |
| Lengde | 1.999 |
| Høyde | 15.999 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42cm-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: PHEL42CM_PH.jpg Filtype: image/png |
Last ned | |
|
2D Dimension Drawing (DWG/DXF) Filnavn: 42CM.dwg Filtype: image/vnd.dwg |
Last ned | |
|
3D STEP Model (STP) Filnavn: 42cm_cable Filtype: application/x-zip-compressed |
Last ned |
