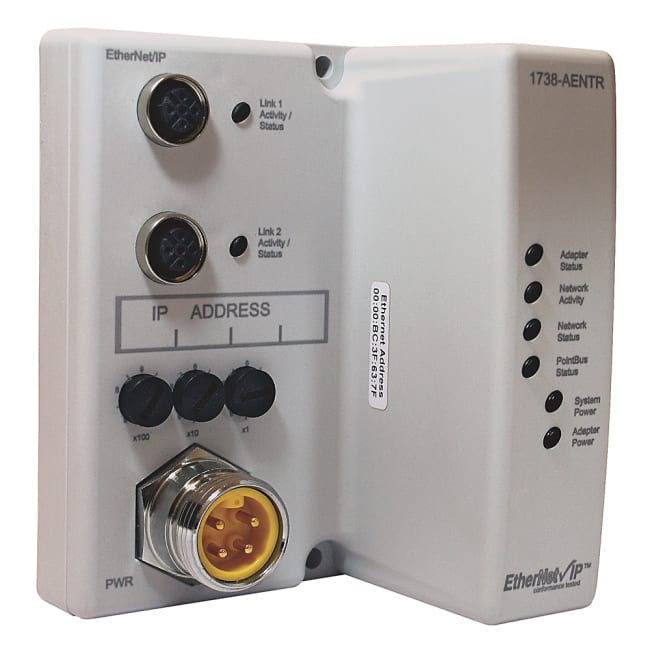

ArmorPoint Dual Port Adaptor
Produktnummer: 1738-AENTR
Produktstatus:
inkl. mva.
1738 ArmorPoint Communication Adaptor, EtherNet/IP, M12 Quick-Disconnect 2 Port ,Input Voltage Range: 10-28V DC Field Side Power Requirements: 24 V DC (+4% = 25V DC) @ 30mA - 4.5W Power Consumption(W) at 24V: 4.5W Inrush Current: 6 A for 10ms Power Dissipation, Max.: 2.8 W @ 28.8 V Included 2 EtherNet/IP Ports, configured as embedded switch
Network Adapter, ArmorPoint I/O, EtherNet/IP, Device Level Ring, 400 ma @24V DC, Sealed, IP69K
Egenskaper for produkt/familie
- Powered from the backplane by the communication module or expansion power supply
- Available with DeviceLogix™ technology
- Choices include digital, analog, and specialty I/O
| Spesifikasjoner | |
|---|---|
| Communication Adaptor Type | EtherNet/IP |
| Termination Type | M12 Quick-Disconnect 2 Port |
| Opprinnelsesland | SG |
| Tolltariffnummer | 85176200 |
| Lengde | 15.189 |
| Høyde | 7.493 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 1738-in028_-en-e.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Specification Sheet Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
Dimension Sheet Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
2D Dimension Drawing (DWG or DXF) Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
2D Dimension Drawing (PDF) Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
Installation Guide Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
3-Dimensional STEP model (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned |
