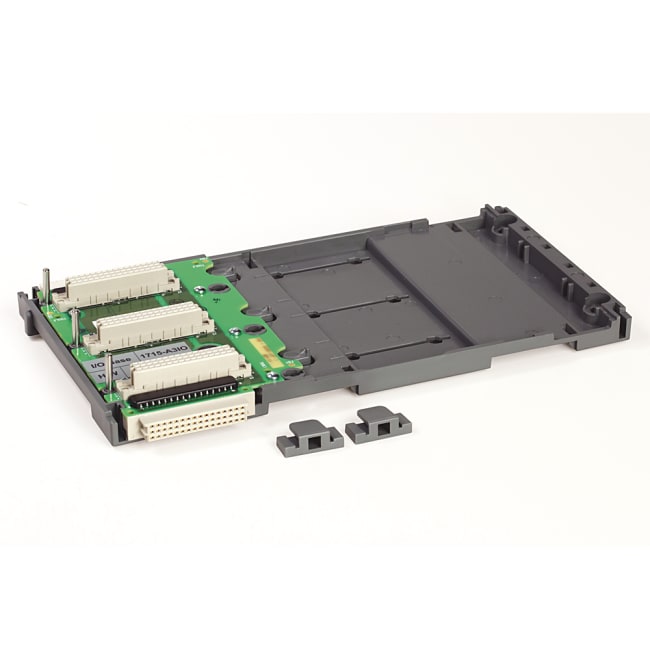

1715 3 Slot Input/Output Base

Produktnummer: 1715-A3IO
Produktstatus:


inkl. mva.

3-slot I/O base unit

Input/Output Base Unit, Redundant I/O, 3 Slot, DIN Rail Mounted, IP20, Operating Temperature -25...70 1/4C (-13...158 1/4F), Used with up to(3) I/O modules

Egenskaper for produkt/familie

  • Include two-terminal current regulating device
  • Require no additional hardware or programming software
  • Provide input voltage data for line monitoring and field fault detection
  • Allow dual redundant field power feed capabilities without requiring external diodes
  • Support short circuit and open circuit line fault detection
  • Built-in diagnostic testing
  • Provide secure communication between modules for fault tolerant operation
  • Provide I/O redundancy for system requiring high availability
  • Provide duplex series output switches with overload protection for each channel
  • Offer 24V DC input
  • Offer 24V DC output
  • Provide voltage and current monitoring on each channel with reverse current protection
  • Offer flexible, modular construction for user-configurable I/O applications
  • 16-channel connection capability
  • Support as many as eight field devices
  • Offer fail-safe design and operation
  • Allow module removal and replacement online with no interruption of the signal inputs
  • Offer 4…20 mA input
  • Eight isolated output channels per module
  • Suitable for simplex and duplex connections and for fault tolerant applications
  • Offer 4…20 mA output
Spesifikasjoner
Chassis 3-slot I/O base unit
Compatibility Used with up to (3) I/O modules
Operating Temperature -25...70 °C (-13...158 °F)
Special Features Standard
Enclosure IP20
Application Chassis Based
Type I/O Base
Mounting DIN rail
Opprinnelsesland MX
Tolltariffnummer 85389099
Lengde 42.189
Høyde 8.89
Livssyklus Active
