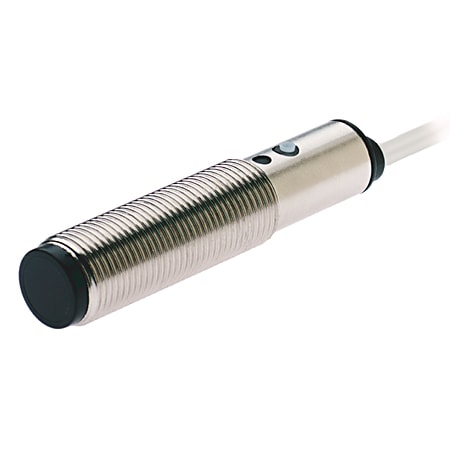

12 mm Clyindrical Sensor
Produktnummer: 42CF-P2LNA1-A2
Produktstatus:
inkl. mva.
12 mm Clyindrical Sensor, Polarized Retroreflective, None, Visible Red, Teach Button, NPN, DC - LO or DO Selectable, 2 M (6.5 Ft) Cable
Egenskaper for produkt/familie
- Accepts remote teach input via momentary push-button or PLC
- NPN or PNP outputs
- Three sensing modes
- 10...30V DC operation
- Response time as low as 1.25 ms
| Spesifikasjoner | |
|---|---|
| Sensing Beam | Visible Red LED |
| Voltage Rating | 10-30V DC |
| Output | Sink (NPN) |
| Sensing Range | 2m (6.6ft) |
| Connection | 2m (6.5ft) cable |
| Maximium Sensing Distance | 2m (6.6ft) |
| Output Type | Sink (NPN) |
| Sensing Mode | Polarized Retroreflective |
| Operating Voltage | 10-30V DC |
| Connection Type | 2m (6.5ft) cable |
| Light Source | Visible Red LED |
| Lengde | 25.146 |
| Høyde | 2.794 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42cf-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D STEP Model (STP) Filnavn: 42cf_pretro_cable Filtype: application/x-zip-compressed |
Last ned | |
|
Dimension Drawing (DXF/DWG) Filnavn: 42CF.dwg Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: PHEL42CF_ph.jpg Filtype: image/png |
Last ned | |
|
Dimension Drawing (PDF) Filnavn: ABGCA090.pdf Filtype: application/pdf |
Last ned |
