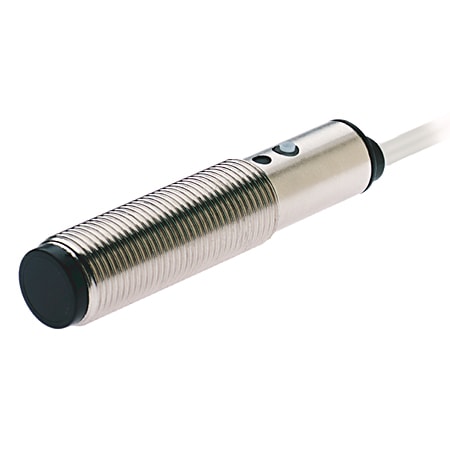

12 mm Clyindrical Sensor, Transmitted Beam Source, None, Infrared, Not Adjustable Sensitivity, DC Transmitted Beam Emitter, 4 Pin Micro Quick Disconnect
Egenskaper for produkt/familie
- 10...30V DC operation
- Three sensing modes
- Response time as low as 1.25 ms
- Accepts remote teach input via momentary push-button or PLC
- NPN or PNP outputs
- 80;889D-F4AC-5
| Spesifikasjoner | |
|---|---|
| Sensing Range | 4m (13ft) |
| Sensing Beam | Infrared LED |
| Voltage Rating | 10-30V DC - Transmitted Beam Source |
| Output | None (transmitted beam light source) |
| Connection | 4-pin DC Micro QD |
| Sensing Mode | Transmitted Beam |
| Maximium Sensing Distance | 4m (13ft) |
| Light Source | Infrared LED |
| Operating Voltage | 10-30V DC - Transmitted Beam Source |
| Output Type | None (transmitted beam light source) |
| Connection Type | 4-pin DC Micro QD |
| Receiver | Transmitted Beam Receiver is not selected |
| Connection Media | DC Micro(M12) ,Female ,Straight ,4-pin PVC, Yellow, Unshielded ,5 m |
| Lengde | 11.608 |
| Høyde | 2.591 |
| Livssyklus | Active |
