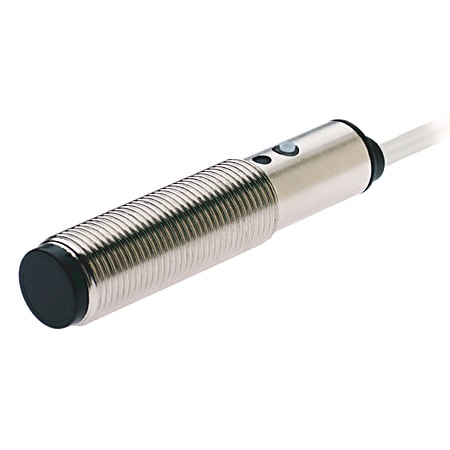

12 mm Clyindrical Sensor
Produktnummer: 42CF-D1LNA1-A2
Produktstatus:
inkl. mva.
12 mm Clyindrical Sensor, Standard Diffuse, None, Infrared, Teach Button, NPN, DC LO or DO Selectable, 2 m (6.5 ft) Cable, Metal, 1.25 ms, 3 mm Minimum Sensing Distance, 100 mm Sensing Distance
Egenskaper for produkt/familie
- Three sensing modes
- Accepts remote teach input via momentary push-button or PLC
- 10...30V DC operation
- NPN or PNP outputs
- Response time as low as 1.25 ms
| Spesifikasjoner | |
|---|---|
| Sensing Mode | Standard Diffuse (Teachable) |
| Light Source | Infrared LED |
| Output Type | Sink (NPN) |
| Connection Type | 2m (6.5ft) cable |
| Operating Voltage | 10-30V DC |
| Maximium Sensing Distance | 100mm (3.9in) |
| Connection | 2m (6.5ft) cable |
| Voltage Rating | 10-30V DC |
| Sensing Beam | Infrared LED |
| Output | Sink (NPN) |
| Sensing Range | 100mm (3.9in) |
| Lengde | 18.001 |
| Høyde | 1.501 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42cf-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D STEP Model (STP) Filnavn: 42cf_diffuse_cable Filtype: application/x-zip-compressed |
Last ned | |
|
Dimension Drawing (DXF/DWG) Filnavn: 42CF.dwg Filtype: image/vnd.dwg |
Last ned | |
|
Dimension Drawing (PDF) Filnavn: ABGCA090.pdf Filtype: application/pdf |
Last ned | |
|
Photo Filnavn: PHEL42CF_ph.jpg Filtype: image/png |
Last ned |
