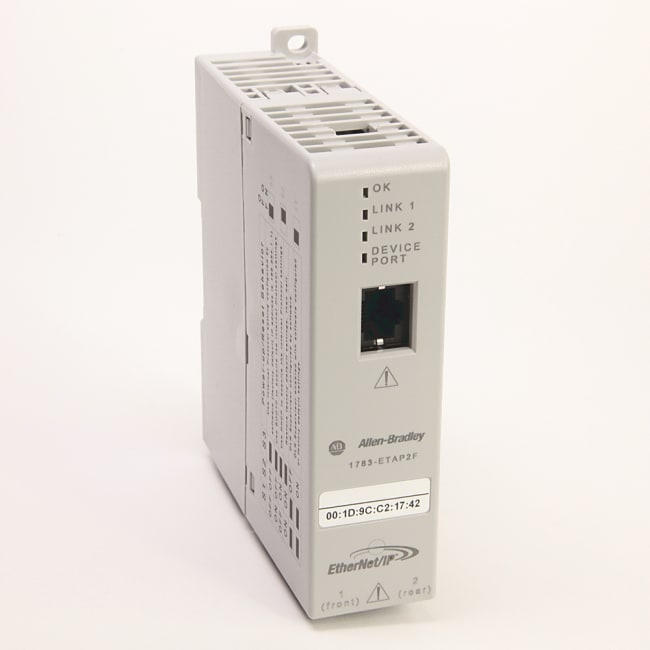

1+2 Port EtherNet/IP Taps

Produktnummer: 1783-ETAP2F
Produktstatus:


inkl. mva.

Networks and Communication Products, EtherNet/IP Tap1 copper port, 2 fiber ports

EtherNet/IP Tap, 1+2 Port, 1 Port, Copper, 10/100 M, 2 Fiber 100base FX Ports, LC Connector

Egenskaper for produkt/familie

  • 140;1585J-M8TBJM-1M9
  • Allows for a high-performance ring capability (make/break < 3 ms), complete with diagnostics and fast recovery to lower downtime
  • Supports IEEE 1588 precision time protocol (PTP) for precise time synchronization and Quality of Service (QoS) to help prioritize data transmission
  • Enables greater topology configuration choices for EtherNet/IP applications, such as linear and device-level ring (DLR)
  • Makes it possible to connect to a linear or ring topology without additional hardware
  • Includes embedded Ethernet switch technology in selected components—such as taps and communication interface modules—that communicate over an EtherNet/IP™ network
Spesifikasjoner
Network Media Male RJ45 to Male RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m
Ethernet/IP Taps EtherNet/IP Tap1 copper port, 2 fiber ports
Width 35mm, 1.36in
Current Consumption, Max 260mA @ 24VDC
Interface 1 Copper RJ45, 2 Fiber LC Multimode
Depth 105mm, 4.13in
Operating Temperature 0...60 °C (32...140 °F)
Type EtherNet/IP Tap
Sub Brand Stratix
Power Consumption, Max 6.24 W
Enclosure IP20
Power Supply 24 VDC
Data Transfer Rate 1 Copper - 10/100 Mbps, 2 Fiber - 100 Mbps
Height 132mm, 5.16in
Opprinnelsesland US
Tolltariffnummer 85176200
Lengde 14.199
Høyde 11.303
Livssyklus Active
