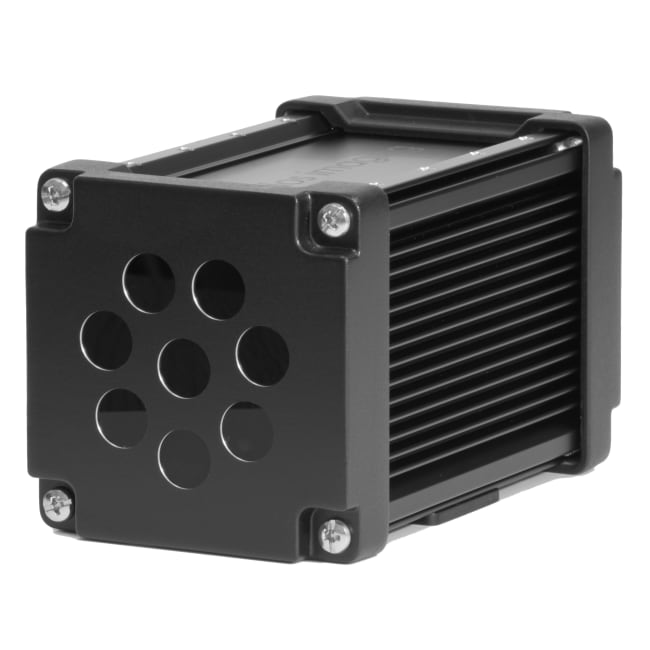

Swift-E Reconfigurable 3D Sensor

Produktnummer: OI-E1480


inkl. mva.

Måler avstander på 300.000 punkter fra en avstand mellom 0,5..6meter.

SPECIFICATIONS

  Parameter Value
  Sensing Area 640 x 480 individual distance points
  Field-of-view 43°x33° (H x V, measured in center)
  Measurement Resolution 1 cm
  Measurement Precision ±1 cm (typical at 2 m, varies with return signal level)
  Illumination 7 x LEDs @ 850 nm
  Operating Range 0.5 – 6 m (~1.5 – 20 ft)
  Output Data Height, Distance
  Response Time ~100 ms (trigger to data)
  Protocol EtherNet/IP
  Power 12 VDC / 30 W (typical), 60 W (peak)
  Operating Temperature -20° to 50°C
  Environmental Rating IP20
  Virtual Sensing Zones Up to 64 virtual sensing zones can be created for every template
  Number of Templates Up to 255 different templates can be created
