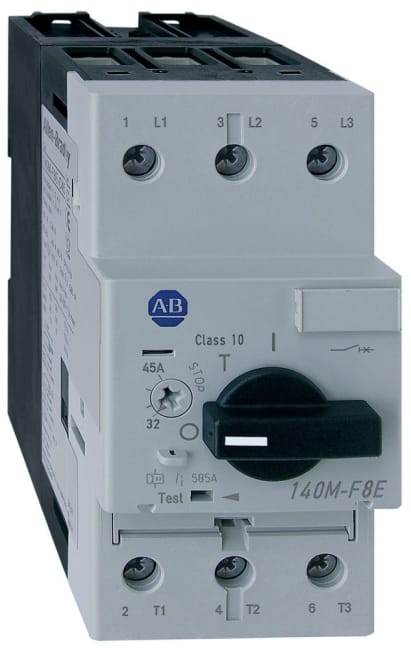

MOTORVERNBRYTER 23-32A**End of Life: 31.12.2024
Produktnummer: 140M-F8E-C32
Produktstatus:
inkl. mva.
MPCB, Standard Magnetic Trip (Fixed at 13 x le), 23 - 32 A, High Performance, Frame Size F
Circuit-Breaker, Motor Protection, 23 - 32A, MxRtg MCPs(no OvPrt)is 1200.0A, Frame Size F, High Breaking Capacity, No Bus Bar Mount, 32 A, No Knob Adaptor Modification, for Thermal Overloads, None, None, Std Mgntc Trp (Fxd at 13 x le), None, None, None, Trigger Constraints, None, No Options Right
Egenskaper for produkt/familie
- Includes visible trip indication
- Offers high switching capacity
| Spesifikasjoner | |
|---|---|
| Trip Range | 23 - 32A |
| Type | High Breaking Capacity |
| Supply Voltage | 480V 60Hz |
| Circuit Breaker Type | Motor Protection Circuit Breaker |
| Adj. Thermal Current Range (A) | 23 - 32A |
| Application | Standard Magnetic Trip (Fixed at 13 x le) |
| Frame Size | Frame Size F |
| Breaking Capacity | High Breaking Capacity |
| UL Listed Application Ratings | UL 508 - Manual Motor Controller |
| Coordination Type | Type 1 |
| Side Mount Shunt Trip and Undervoltage Release | None |
| Front Mount Auxiliary and Trip Contacts | None |
| Side Mount Auxiliary and Trip Contacts (TESTDESC) | None |
| Opprinnelsesland | CH |
| Tolltariffnummer | 85362010 |
| Lengde | 13.31 |
| Høyde | 6.198 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 140m-td002_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D Drawing (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
|
2D Drawing (DWG) Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: en-US Filtype: image/png |
Last ned | |
|
3D Mechanical Drawing (PDF) Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
ABESE230.dwg Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
ABESE230.dxf Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
ABESE230.pdf Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
ABESE230.wmf Filnavn: en-US Filtype: application/x-msmetafile |
Last ned | |
|
ABESE231.dwg Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
ABESE231.dxf Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
ABESE231.pdf Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
ABESE231.wmf Filnavn: en-US Filtype: application/x-msmetafile |
Last ned |
