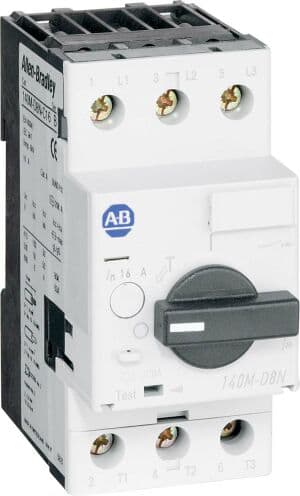

EFFEKTBRYTER 32A**End of Life: 31.01.2022
Produktnummer: 140M-D8N-C32
Produktstatus:
inkl. mva.
MCP, Standard Magnetic Trip (Fixed at 13 x le), 32 A, High Performance, Frame Size D
Circuit-Breaker, Motor Circuit Protector, TheMaxRtgForMPCBs=630.0A, 32A, Frame Size D, High Breaking Capacity, No Bus Bar Mount, 32 A, No Knob Adaptor Modification, for Thermal Overloads, None, None, None, Std Mgntc Tr (Fxd at 13 x le)., None, UL 508 - Manual Motor Cntrlr, None, Trigger Constraints, None, No Options Right
Egenskaper for produkt/familie
- Offers high switching capacity
- Includes visible trip indication
| Spesifikasjoner | |
|---|---|
| Type | High Breaking Capacity |
| Supply Voltage | 480V 60Hz |
| Circuit Breaker Type | Motor Circuit Protector |
| Rated Operational Current (A) | 32A |
| Application | Standard Magnetic Trip (Fixed at 13 x le) |
| Frame Size | Frame Size D |
| Magnetic Trip Current (A) | 448A Fixed |
| Breaking Capacity | High Breaking Capacity |
| UL Listed Application Ratings | UL 508 - Manual Motor Controller |
| Coordination Type | Type 1 |
| Side Mount Shunt Trip and Undervoltage Release | None |
| Front Mount Auxiliary and Trip Contacts | None |
| Side Mount Auxiliary and Trip Contacts (TESTDESC) | None |
| Opprinnelsesland | CH |
| Tolltariffnummer | 85362010 |
| Lengde | 9.296 |
| Høyde | 9.601 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 140m-td002_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: en-US Filtype: image/png |
Last ned | |
|
3D Drawing (STP) Filnavn: en-US Filtype: application/x-zip-compressed |
Last ned | |
|
2D Drawing (DWG) Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
3D Mechanical Drawing (PDF) Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
ABESE250.dwg Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
ABESE250.dxf Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
ABESE250.pdf Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
ABESE250.wmf Filnavn: en-US Filtype: application/x-msmetafile |
Last ned | |
|
ABESE251.dwg Filnavn: en-US Filtype: image/vnd.dwg |
Last ned | |
|
ABESE251.dxf Filnavn: en-US Filtype: image/vnd.dxf |
Last ned | |
|
ABESE251.pdf Filnavn: en-US Filtype: application/pdf |
Last ned | |
|
ABESE251.wmf Filnavn: en-US Filtype: application/x-msmetafile |
Last ned |
