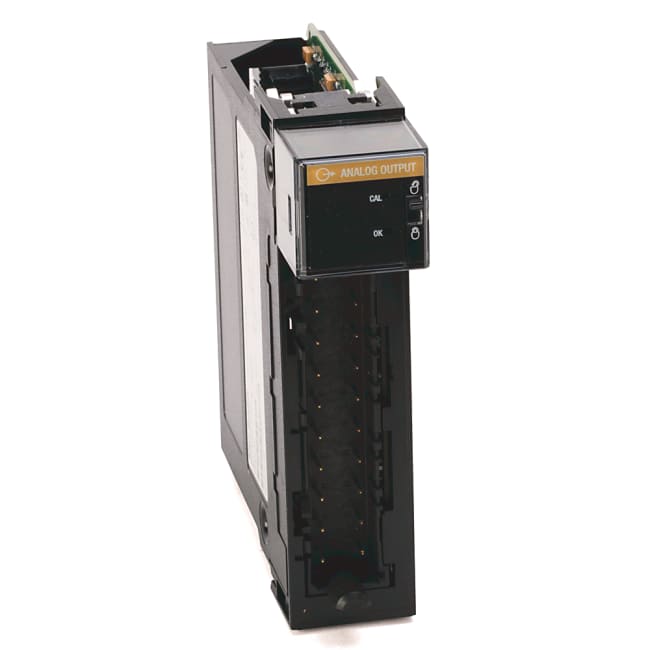

ControlLogix 8 Point A/O Module
Produktnummer: 1756-OF8
Produktstatus:
inkl. mva.
Analog Output - Current/Voltage 8 Pts (20 Pin)
Output Module, ControlLogix, Analog, 8 Point, Single Ended Outputs, Current and Voltage
| Spesifikasjoner | |
|---|---|
| Product Type | I/O Modules |
| Sub Brand | ControlLogix |
| Type | Analog Output Module |
| Special Features | Standard |
| Mounting | Chassis |
| Enclosure | None (open-style) |
| Output Signal | +/- 10.4V, 0-21 mA |
| Isolation | None between channels (Single Ended) |
| Display | Module Health, In Calibration Mode |
| Operating Temperature | 0...60 °C (32...140 °F) |
| Removable Terminal Block | 1756-TBNH or 1756-TBSH |
| Analog Output Modules (Please select number of Removable terminal Blocks as addded in the list.) | Analog Output - Current/Voltage 8 Pts (20 Pin) |
| Opprinnelsesland | US |
| Tolltariffnummer | 85389099 |
| Lengde | 23.368 |
| Høyde | 5.588 |
| Livssyklus | Active |
