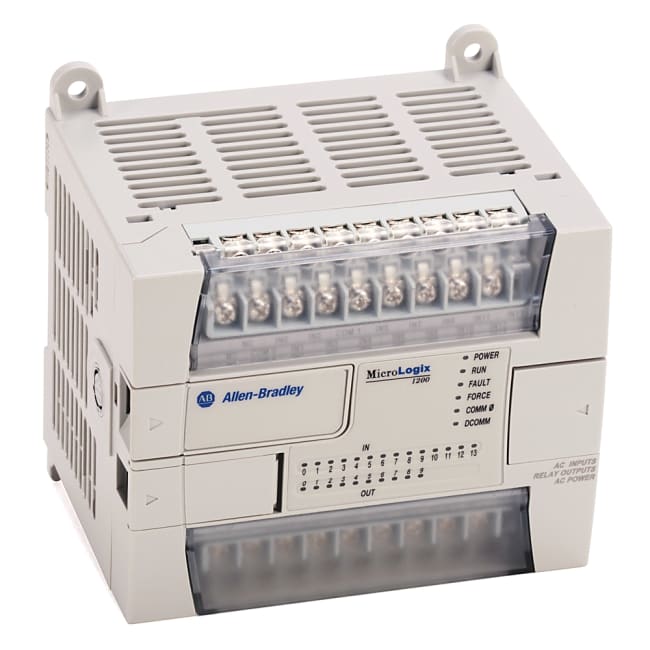

MicroLogix 1200 24 Point Controller **End of Life:28.02.2021

Produktnummer: 1762-L24BXB
Produktstatus:


inkl. mva.

1762 MicroLogix 1200 System, MicroLogix 1200, 24V dc power, (10) standard 24V dc and (4) fast 24V dc digital inputs, (5) relay outputs, (4) standard 24V dc FET outputs, (1) fast 24V dc FET output

MicroLogix 1200, 24V dc power, (10) standard 24V dc and (4) fast 24V dc digital inputs, (5) relay outputs, (4) standard 24V dc FEToutputs, (1) fast 24V dc FET output

Egenskaper for produkt/familie

  • Includes built-in independent 20 kHz high-speed counter
  • Supports floating point data files
  • Thermocouple module with 4 input channels plus a CJC sensor
  • Compatible with 1762 MicroLogix Expansion I/O modules (up to six modules per controller)
  • Integrated high-performance I/O bus
  • Includes two built-in 3/4-turn trim potentiometers with a digital output range of 0...250
  • Small footprint reduces panel space
  • AC and DC voltages
  • Software keying prevents incorrect positioning within the system
  • Combination module with 8 inputs and 6 contact outputs
  • Expands up to 136 I/O points
  • Offers Programmable Limit Switch function
  • AC/DC relay output modules
  • RTD module with 4 input channels
  • Feature-rich functionality addresses a wide range of applications
  • Output module with 4 single-ended outputs
  • Combination module with 2 differential inputs and 2 single-ended outputs
  • 8, 16, or 32 inputs or outputs
  • Contains isolated RS-232/RS-485 combo port for serial and networked communication
  • Provides additional programming/HMI port for connectivity to a DF1 full-duplex compatible device (only on MicroLogix™ 1200R controllers)
  • Label to record I/O terminal designations
  • Provides four latching or pulse-catch inputs and four interrupt inputs
  • Provides program data security
  • Digital, analog, and specialty I/O modules available
  • Finger-safe terminal blocks for I/O wiring
  • Network support includes EtherNet/IP™, DeviceNet™, and DH-485 (local only)
  • Input module with 4 differential inputs
Spesifikasjoner
Operating Temperature 0... 55 °C (32...131 °F)
Number Of Channels 14 I/P, 10 O/P
Display No
Enclosure IP20
Interface RS-232C Port
Sub Brand MicroLogix 1200
Standard c-UL-us CL1DIV2, CE, C-Tick, KCC
Special Features 1 HSC, 1 PTO/PWM, Up to 6 Expansion I/O
Input Signal 24V DC
Width 110
Memory 6 KB
Type Controller
Depth 87
Mounting DIN Rail, Panel Mount
Communication DF1, DH-485, Modbus RTU, ASCII
Power Supply 24V DC
Output Signal (5) Relay and (5) 24V DC FET
Height 90
Controllers MicroLogix 1200, 24V dc power, (10) standard 24V dc and (4) fast 24V dc digital inputs, (5) relay outputs, (4) standard 24V dc FET outputs, (1) fast 24V dc FET output
Opprinnelsesland SG
Tolltariffnummer 85371091
Lengde 14.61
Høyde 9.8
Livssyklus End of Life
