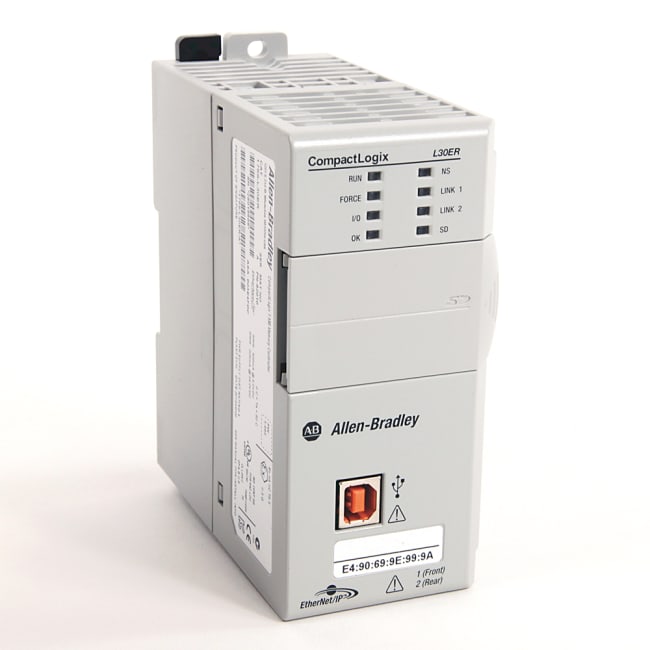

CompactLogix 1 MB Memory Controller

Produktnummer: 1769-L30ER
Produktstatus:


inkl. mva.

CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 1MB Memory, 8 I/O Expansion, 16 Ethernet IP Nodes. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.

Controller, CompactLogix, 1 MB Memory, Dual Ethernet Port - SD Card Supported - USB

Egenskaper for produkt/familie

  • Support seamless bridging with data control and collection over the same network
  • Permit on-line editing, forcing and other standard activities while securely isolating safety functionality (L4xS controllers only)
  • Offer selectable response to a broken input sensor
  • Supports integrated safety up to SIL 3, PLe CAT 4
  • Offer user memory options ranging 2 MB to 3 MB
  • Provide optical isolation
  • Provide high accuracy ratings
  • Provide individually configurable channels
  • Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
  • Address reserve, ASCII, Boolean control, and high-speed counter modules available
  • Offer direct connection
  • Provides flexibility with DIN rail or panel mounting options
  • Provides seamless bridging with data control and collection over the same network
  • Let you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet
  • Ideal for small, to mid-size applications that require low axis motion and I/O point counts
  • Includes individual point diagnostic status indicators to ease troubleshooting
  • Includes a built-in RS-232 serial port on every 1769-L3x controller
  • Simplify your system architecture with distributed I/O over EtherNet/IP
  • Include high speed input modules
  • Removes the need for lithium batteries with built-in energy storage
  • Offers flexible user memory options
  • Support SIL 3, PLe integrity (L4xS controllers only)
  • Connects as many as three banks of Compact I/O™ to a controller; requires use of a communication adapter module and power supply
  • Supports up to 2 axes Kinematics for simple articulated robotics
  • Offers a smaller form factor for maximized cabinet space
  • Provides up to 16 axes of Integrated Motion over EtherNet/IP
  • Allow control migrations with re-use of existing 1769 I/O
  • Offer input filtering
  • Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
  • Integrates with 1769 Compact I/O™ modules
  • Include autocalibration of inputs
  • Prevents incorrect positioning of module with software keying
  • Include on-board scaling
  • Provides ability to connect with scaled HMI options from the PanelView™ Plus portfolio to PanelView 800 graphic terminals for simple features
  • Integrate with 1769 Compact I/O™ modules
  • Provide integrated serial port
  • Available with conformal coating
  • Does not require a chassis
  • Include over-range and under-range detection and indication
  • Offer a variety of AC and DC voltages
  • Support single network strategy to EtherNet/IP TCP/CIP connection 96
  • Lets you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet (select models only)
  • Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O™ to DPI/SCANport™ and Compact I/O to DSI/Modbus modules
  • Includes a 1769-SDN communication interface module for I/O control and remote device configuration over DeviceNet
  • Includes up to a 2-GB secure digital (SD) card for fast program save and restore
  • Include contact output modules
  • Include 8…32 points per module
  • Require a chassis
  • Require SERCOS interface modules for motion
  • Include I/O packet rate of 10,000 pps
  • Offers support for Integrated Motion over EtherNet/IP™ for maximized scalability
  • Delivers standard, safety and motion control for On-Machine™ applications
  • Offer analog, thermocouple, and RTD modules
  • Provide dual Ethernet ports for both DLR and linear topologies
  • Include ability to direct output device operation during an abnormal condition
  • Provides integrated safety and integrated motion in a single controller
  • Offers built-in communication ports for EtherNet/IP or ControlNet networks
Spesifikasjoner
Memory 1MB
Type Standard Controller
Mounting DIN Rail / Panel mount
Sub Brand CompactLogix
Height 118mm, 4.65"
Special Features Standard
Operating Temperature 0...60 °C (32...140 °F)
Depth 105mm, 4.13"
Enclosure None (open-style)
Communication Ethernet , USB
Width 55mm, 2.17"
Display Status LEDs
Isolation 30V (continuous), Basic Insulation Type, USB to system, Ethernet to system and Ethernet to Ethernet. Type tested at 500V AC for 60 s
CompactLogix 5370 L3 Controllers CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 1MB Memory, 8 I/O Expansion, 16 Ethernet IP Nodes. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.
Network Media Male RJ45 to Male RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m
Opprinnelsesland >1
Tolltariffnummer 85371091
Lengde 18.923
Høyde 9.652
Livssyklus Active
