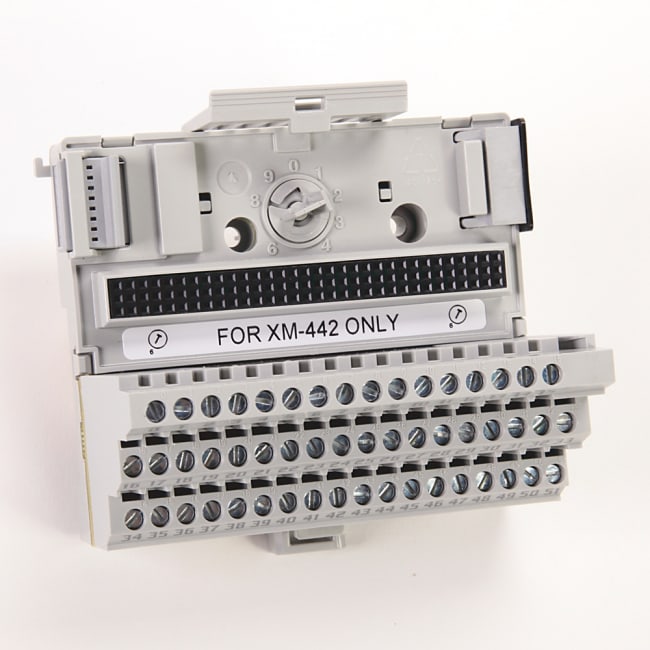

XM Series Screw Clamp Terminal Base G
inkl. mva.
1440-TB-G: Terminal Base
Egenskaper for produkt/familie
- Allows tags to be imported from a Logix controller, scheduled or on demand
- Module I/O and configuration tables are exposed as common tags in the Studio 5000 Logix Designer application
- Includes one digital output for use with an XM-442 EODS Relay module
- Allows the ability to import/export data from any OPC server
- Includes two tachometer inputs, each measures ±25V (50V max. peak to peak)
- Offers single on-board relay
- Offers live data view from any 1444 series monitor on any machine, by any user from any location
- Includes module configuration managed by a ControlLogix® controller and the Studio 5000™ Logix Designer application
- Includes single on-board relay
- Supports Dynamix 2500 and Enpac 2500 Data Collectors
- Provides ability to monitor shaft, casing, or pedestal vibration in rotating equipment
- Includes one virtual relay
- Offers signal processing which provides two levels of integration and FFT processing with as many as 30 measured parameters
- Includes the ability to download defect frequencies to collectors
- Supports maximum of 10 1440-DYN02-01RJ Dynamic Measurement Modules on a ControlNet™ network
- Includes two channels connect common vibration sensors (e.g., eddy current probes, accelerometers) and any sensor that outputs a voltage signal
- Includes four virtual relays or four additional relays (when connected to an XM® 441 Expansion Relay Module)
- Communicates via ControlNet™ network (connected through a 1440-ACNR ControlNet Adapter)
- Allows communication via DeviceNet™ network
- Includes one tachometer channel that accepts input from most speed measurement sensors and can measure speeds 1…1.2M RPM with pulse rates 1…50,000 events per revolution
- Offers signal processing which provides synchronous or asynchronous measurements
- Includes fault frequency identification
- Includes two channels which connect common vibration sensors (e.g., eddy current probes, accelerometers) and any sensor that outputs a voltage signal
- Offers built-in and user editable rule sets
- Provides ability to schedule automated data collection from any number of 1444 series or 1440 series monitors or machines
Spesifikasjoner | |
---|---|
Terminal Bases | 1440-TB-G |
Tolltariffnummer | 85369010 |
Lengde | 13.208 |
Høyde | 9.144 |
Livssyklus | Active |
