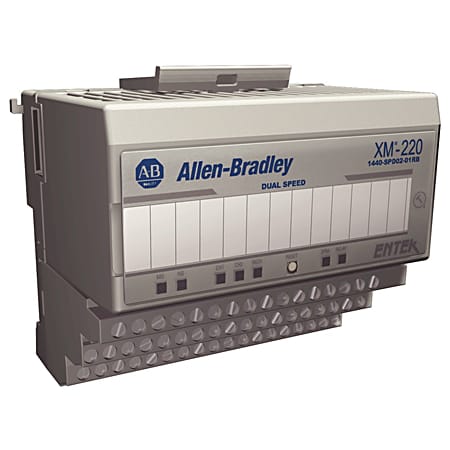

XM 220 Speed Measurement Module

Produktnummer: 1440-SPD02-01RB
Produktstatus:


inkl. mva.

1440-SPD02-01RB: XM-220 Dual Speed Module

1440 Series Measurement Module, Inputs: 2 channels, Network: DeviceNet, Outputs: 2 4-20mA analog and 1 relay (+4 optional), Measures: Speed, acceleration, Detects: Overspeed, reverse rotation and locked rotor, Requires terminal base 1440-TB-B

Egenskaper for produkt/familie

  • Includes two tachometer inputs, each measures ±25V (50V max. peak to peak)
  • Module I/O and configuration tables are exposed as common tags in the Studio 5000 Logix Designer application
  • Includes fault frequency identification
  • Provides ability to monitor shaft, casing, or pedestal vibration in rotating equipment
  • Supports Dynamix 2500 and Enpac 2500 Data Collectors
  • Provides ability to schedule automated data collection from any number of 1444 series or 1440 series monitors or machines
  • Includes four virtual relays or four additional relays (when connected to an XM® 441 Expansion Relay Module)
  • Offers single on-board relay
  • Offers live data view from any 1444 series monitor on any machine, by any user from any location
  • Offers signal processing which provides synchronous or asynchronous measurements
  • Allows the ability to import/export data from any OPC server
  • Supports maximum of 10 1440-DYN02-01RJ Dynamic Measurement Modules on a ControlNet™ network
  • Offers signal processing which provides two levels of integration and FFT processing with as many as 30 measured parameters
  • Allows tags to be imported from a Logix controller, scheduled or on demand
  • Includes two channels connect common vibration sensors (e.g., eddy current probes, accelerometers) and any sensor that outputs a voltage signal
  • Communicates via ControlNet™ network (connected through a 1440-ACNR ControlNet Adapter)
  • Includes one digital output for use with an XM-442 EODS Relay module
  • Includes one virtual relay
  • Allows communication via DeviceNet™ network
  • Offers built-in and user editable rule sets
  • Includes the ability to download defect frequencies to collectors
  • Includes one tachometer channel that accepts input from most speed measurement sensors and can measure speeds 1…1.2M RPM with pulse rates 1…50,000 events per revolution
  • Includes two channels which connect common vibration sensors (e.g., eddy current probes, accelerometers) and any sensor that outputs a voltage signal
  • Includes module configuration managed by a ControlLogix® controller and the Studio 5000™ Logix Designer application
  • Includes single on-board relay
Spesifikasjoner
Measurement Modules 1440-SPD02-01RB: XM-220 Dual Speed Module
Tolltariffnummer 90292031
Lengde 13.081
Høyde 9.017
Livssyklus Active
