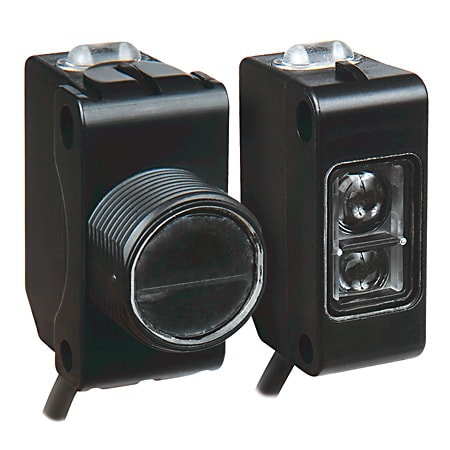

42JS Photoelectric Sensor
Produktnummer: 42JS-R9MPA2-A2
Produktstatus:
inkl. mva.
Photoelectric Sensor, Transmitted Beam Receiver, 10-10 m Sensing Range, Infrared LED, Light Operate - Dark Operate Output, PNP Output, 2m Cable, Adjustable Sensitivity
| Spesifikasjoner | |
|---|---|
| Sensing Beam | None |
| Sensing Range | 10 m - Infrared |
| Connection Type | 2m (6.5ft) cable |
| Output Type | Source (PNP) |
| Sensing Mode | Transmitted Beam Receiver |
| Light Source | None |
| Sensitivity Adjustment | Standard Adjustable |
| Operating Voltage/Mode | DC - 2 Complementary LO/DO Outputs |
| Lengde | 21.001 |
| Høyde | 1.999 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42js-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Photo Filnavn: VisiSight_Photo.jpg Filtype: image/png |
Last ned | |
|
Dimension Drawing (3D STEP format) Filnavn: 42js_with_adjust Filtype: application/x-zip-compressed |
Last ned | |
|
Dimension Drawing (DXF) Filnavn: 42JS%20VisiSight.dxf Filtype: image/vnd.dxf |
Last ned |
