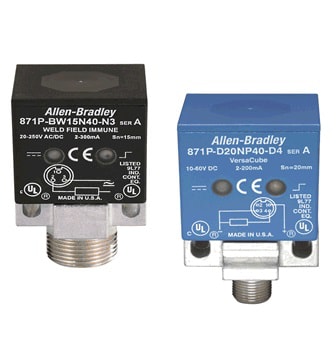

VersaCube Multi-Position Inductive Sensor
Produktnummer: 871P-BW15C40-R3
Produktstatus:
inkl. mva.
Inductive Sensor, Rectangular, Weld Field Immunity, No Special Coatings, AC/DC, 15 mm Sensing Distance, Normally Closed, AC/DC Micro Quick Disconnect
Egenskaper for produkt/familie
- Includes short circuit, false pulse, overload, transient noise and reverse polarity protection
- Includes weld-slag resistant housing with optional ToughCoat Finish™
- Applications include:
- Provides 5-position sensing head
| Spesifikasjoner | |
|---|---|
| Proximity Sensor Type | 2-Wire AC/DC |
| Shielding | Shielded |
| Brackets | Bracket incorporated into Sensor |
| Toughcoat/Weld-Slag Resistant Finish | Without Toughcoat/Weld-Slag Resistant Finish |
| Special Features | Weld Field Immune With Standard Base |
| Connection Type | Micro Quick-Disconnect (AC) |
| Output Configuration | N.C. |
| Nominal Sensing Distance | 15mm |
| Lengde | 6.909 |
| Høyde | 14.808 |
| Livssyklus | Active |
