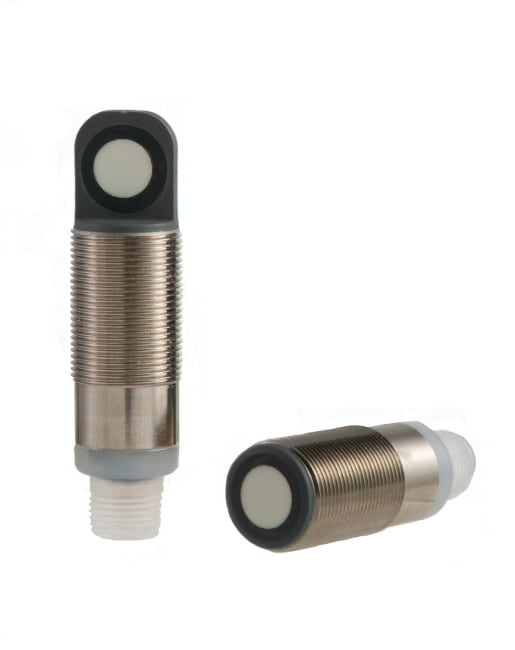

873M Ultrasonic Sensor

Produktnummer: 873M-D18PO300-D4
Produktstatus:


inkl. mva.

Proximity Sensor, Cylindrical 18mm, PNP - Discrete, 18mm Diameter, 50mm to 300mm Sensing Distance, Micro Quick-Disconnect (DC)

Sensor, Ultrasonic, 873M, Diffuse, PNP, NO, Remote Teach, 18mm Threaded Barrel, 300mm Sensing Range, DC Micro QD

Egenskaper for produkt/familie

  • 80;889D-F4AC-5
  • M12 connector, 4-pin QD
  • Nickel-plated brass housing
  • Bright LEDs display output status
  • Applications include:
Spesifikasjoner
Connection Media DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m
Model Bulletin 873M General Purpose Cylindrical 18mm
Size 18mm
Connection Micro QD (DC)
Output PNP-Normally Open/Normally Closed
Sensing Distance 50mm to 300mm
Sensing Direction Straight
Barrel Diameter 18mm
Output Configuration PNP-Normally Open/Normally Closed
Family Style Bulletin 873M General Purpose Cylindrical 18mm
Sensing Range 50mm to 300mm
Termination Type Micro QD (DC)
Enclosure Nickel Plated Brass
Opprinnelsesland SG
Tolltariffnummer 85365019
Lengde 10.389
Høyde 3.607
Livssyklus Active
