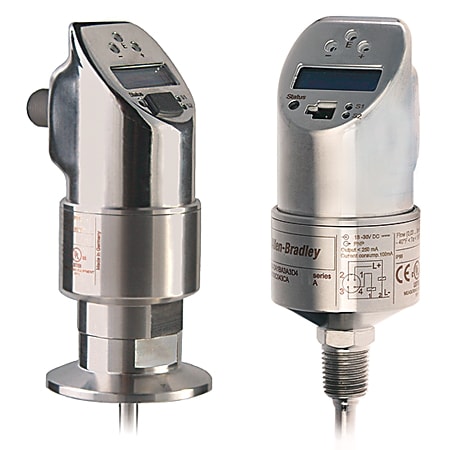

Solid State Flow and Temperature Sensor
Produktnummer: 839E-DC1BA1A2D4
Produktstatus:
inkl. mva.
Flow Transmitter, Solid State, Digital Display, Single PNP Analog Output, 1/4" NPT Male , 100 mm
Egenskaper for produkt/familie
- Four digit 14-segment digital display
- Selectable units of measurement °C, °F, or %
- IP67 enclosure rating to withstand harsh industrial conditions
- 316L stainless steel probe
- Rugged, corrosion-resistant 316L stainless steel housing with IP66 enclosure rating
| Spesifikasjoner | |
|---|---|
| Display | Digital Display |
| Output | 4...20 mA Analog Output with Single PNP Output |
| Supply Voltage | DC |
| Media Type | Liquid |
| Flow Range | 0.03 to 3 meters/sec |
| Process Connection | 1/4 inch NPT (Male) |
| Probe Style | Local |
| Probe Length | 100 mm (3.93 in) |
| Electrical Connection | M12 Micro |
| Lengde | 6.909 |
| Høyde | 21.59 |
| Livssyklus | Active |
