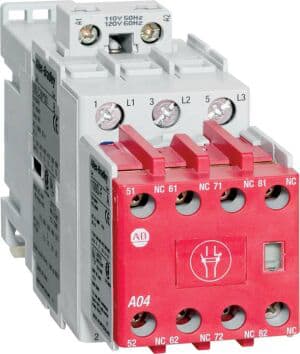

SIKKERH.KONT. 4KW-400V.24VDC LAVEFFEKT,1NO+4NC
Produktnummer: 100S-C09EJ14BC
Produktstatus:
inkl. mva.
100S-C Safety Contactor, 9A, Line Side, 24V DC (w/Elec. Coil), 3 N.O., 1 N.O. 4 N.C., Bifuracated Contact
Safety Contactor, 9 A, 24V50/60Hz/24VDC Elec Cl, 3 Normally Open Power Poles, 24V DC Electronic, 1 NOC & 4 NCC, Line Side Coil Termination, Bifuracated Contact
Egenskaper for produkt/familie
- Provides AC and DC operating coils
- Offers a complete range of accessories
- Reduces drop-out time to 18-23ms, a reduction of up to 50% compared to standard electronic coils
- Includes red contact housing for easy identification
| Spesifikasjoner | |
|---|---|
| 1-Phase HP (60 Hz) 115V Rating | 0.5 |
| Contact Configuration | 1 N.O. 4 N.C. |
| 1-Phase HP (60 Hz) 230V Rating | 1.5 |
| 3-Phase HP (60 Hz) 575V Rating | 7.5 |
| Special Features | Bifurcated Contact |
| Coil Voltage | 24V DC Electronic Coil |
| Rated Operating Current, AC-3 | 9A |
| Auxiliary Contact Configuration | 1 N.O. 4 N.C. |
| Auxiliary Contact Type | Bifurcated Contact |
| Coil Termination | Line Side |
| No. of Power Poles | 3 N.O. |
| Opprinnelsesland | CH |
| Tolltariffnummer | 85364190 |
| Lengde | 19.609 |
| Høyde | 9.093 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 100-td013_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
Repair Parts List Filnavn: 100SC_parts%20rp.pdf Filtype: application/pdf |
Last ned | |
|
2D Drawing (PDF) Filnavn: 100-C_FS0_AC_DCE_100-F_4pol.pdf Filtype: application/pdf |
Last ned | |
|
2D Drawing (DWG/DXF) Filnavn: 100-C_FS0_AC_DCE_100-F_4pol.dxf Filtype: image/vnd.dxf |
Last ned | |
|
3D STP (STEP) Model Filnavn: 100-C_FS0_AC_DCE_100-F_4pol Filtype: application/x-zip-compressed |
Last ned | |
|
MCS 100-C Contactor Photo Filnavn: 100SC_Ph.jpg Filtype: image/png |
Last ned | |
|
ABMSA010.dwg Filnavn: ABMSA010.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABMSA010.dxf Filnavn: ABMSA010.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABMSA010.pdf Filnavn: ABMSA010.pdf Filtype: application/pdf |
Last ned | |
|
ABMSA010.wmf Filnavn: ABMSA010 Filtype: application/x-msmetafile |
Last ned | |
|
ABMSJ010.dwg Filnavn: ABMSJ010.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABMSJ010.dxf Filnavn: ABMSJ010.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABMSJ010.pdf Filnavn: ABMSJ010.pdf Filtype: application/pdf |
Last ned | |
|
ABMSJ010.wmf Filnavn: ABMSJ010 Filtype: application/x-msmetafile |
Last ned | |
|
ABMSA011.dwg Filnavn: ABMSA011.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABMSA011.dxf Filnavn: ABMSA011.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABMSA011.pdf Filnavn: ABMSA011.pdf Filtype: application/pdf |
Last ned | |
|
ABMSA011.wmf Filnavn: ABMSA011 Filtype: application/x-msmetafile |
Last ned | |
|
ABMSJ011.dwg Filnavn: ABMSJ011.dwg Filtype: image/vnd.dwg |
Last ned | |
|
ABMSJ011.dxf Filnavn: ABMSJ011.dxf Filtype: image/vnd.dxf |
Last ned | |
|
ABMSJ011.pdf Filnavn: ABMSJ011.pdf Filtype: application/pdf |
Last ned | |
|
ABMSJ011.wmf Filnavn: ABMSJ011 Filtype: application/x-msmetafile |
Last ned |
