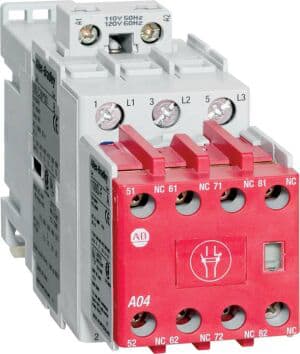

SIKKERH.KONT. 4KW-400V.230VAC SPOLE,2NO+3NC

Produktnummer: 100S-C09KF23BC
Produktstatus:


inkl. mva.

100S-C Safety Contactor, 9A, Line Side, 230V 50/60Hz, 3 N.O., 2 N.O. 3 N.C., Bifuracated Contact

Safety Contactor, 9 A, 230V 50/60 Hz, 230V AC 50/60 Hz, 3 Normally Open Power Poles, 2 NOC & 3 NCC, Line Side Coil Termination, Bifuracated Contact
Spesifikasjoner
Rated Operating Current, AC-3 9A
Coil Voltage 230V 50/60Hz
No. of Power Poles 3 N.O.
Coil Termination Line Side
Auxiliary Contact Configuration 2 N.O. 3 N.C.
Auxiliary Contact Type Bifurcated Contact
Opprinnelsesland CH
Tolltariffnummer 85364900
Lengde 13.0
Høyde 5.001
Livssyklus Active
