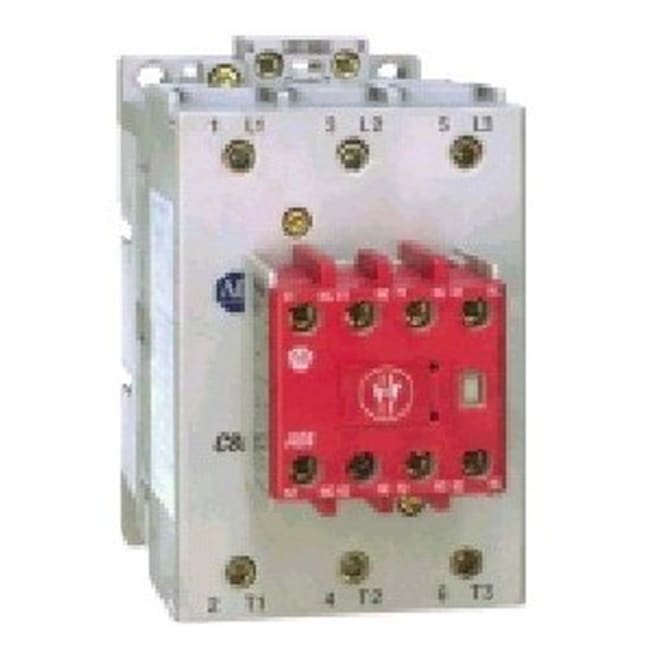

SIKKERH.KONT. 22KW-400V.230VAC,1NO+3NC
Produktnummer: 100S-C43KF14BC
Produktstatus:
inkl. mva.
100S-C Safety Contactor, 43A, Line Side, 230V 50/60Hz, 3 N.O., 1 N.O. 4 N.C., Bifuracated Contact
Safety Contactor, 43 A, IEC, 230V 50/60 Hz, 230V AC 50/60 Hz, 3 Normally Open Power Poles, 1 NOC & 4 NCC, Line Side Coil Termination, Bifuracated Contact
| Spesifikasjoner | |
|---|---|
| Special Features | Bifurcated Contact |
| 3-Phase kW (50 Hz) 690V Rating | 22 |
| 3-Phase HP (60 Hz) 200V Rating | 10 |
| 3-Phase HP (60 Hz) 230V Rating | 15 |
| 3-Phase HP (60 Hz) 575V Rating | 30 |
| 3-Phase kW (50 Hz) 500V Rating | 25 |
| 1-Phase HP (60 Hz) 230V Rating | 7.5 |
| 3-Phase kW (50 Hz) 400V/415V Rating | 22 |
| 3-Phase HP (60 Hz) 460V Rating | 30 |
| Contact Configuration | 1 N.O. 4 N.C. |
| 3-Phase kW (50 Hz) 230V Rating | 13 |
| Auxiliary Contact Configuration | 1 N.O. 4 N.C. |
| Auxiliary Contact Type | Bifurcated Contact |
| No. of Power Poles | 3 N.O. |
| Coil Voltage | 230V 50/60Hz |
| Coil Termination | Line Side |
| Rated Operating Current, AC-3 | 43A |
| Opprinnelsesland | PL |
| Tolltariffnummer | 85364900 |
| Lengde | 16.993 |
| Høyde | 23.597 |
| Livssyklus | Active |
