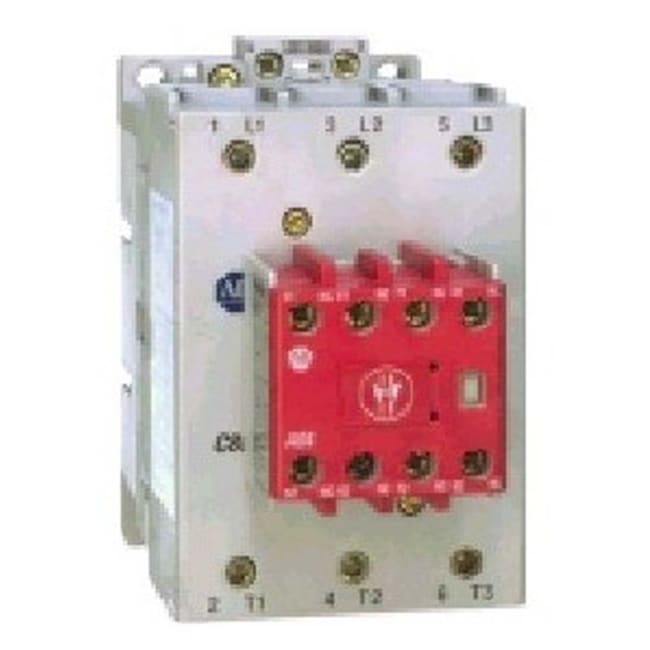

SIKKERH.KONT. 18.5KW-400V.230VAC SPOLE, 2NO+2NC
Produktnummer: 100S-C37KF22BC
Produktstatus:
inkl. mva.
100S-C Safety Contactor, 37A, Line Side, 230V 50/60Hz, 3 N.O., 2 N.O. 2 N.C., Bifuracated Contact
Safety Contactor, 37 A, 230V 50/60 Hz, 230V AC 50/60 Hz, 3 Normally Open Power Poles, 2 NOC & 2 NCC, Line Side Coil Termination, Bifuracated Contact
| Spesifikasjoner | |
|---|---|
| Rated Operating Current, AC-3 | 37A |
| Coil Voltage | 230V 50/60Hz |
| Auxiliary Contact Type | Bifurcated Contact |
| Coil Termination | Line Side |
| Auxiliary Contact Configuration | 2 N.O. 2 N.C. |
| No. of Power Poles | 3 N.O. |
| Opprinnelsesland | CH |
| Tolltariffnummer | 85364900 |
| Lengde | 15.011 |
| Høyde | 5.004 |
| Livssyklus | Active |
