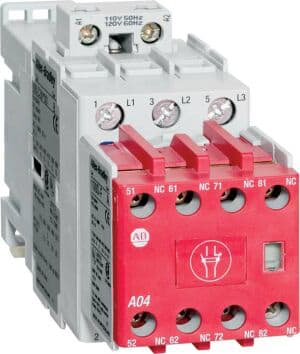

SIKKERH.KONT. 11KW-400V.24VDC LAV EFFEKT,1N0+4NC
inkl. mva.
100S-C Safety Contactor, 23A, Line Side, 24V DC (w/Elec. Coil), 3 N.O., 1 N.O. 4 N.C., Bifuracated Contact
Egenskaper for produkt/familie
- Includes red contact housing for easy identification
- Offers a complete range of accessories
- Provides AC and DC operating coils
- Reduces drop-out time to 18-23ms, a reduction of up to 50% compared to standard electronic coils
Spesifikasjoner | |
---|---|
Contact Configuration | 1 N.O. 4 N.C. |
Special Features | Bifurcated Contact |
3-Phase kW (50 Hz) 230V Rating | 7.5 |
3-Phase kW (50 Hz) 400V/415V Rating | 11 |
3-Phase kW (50 Hz) 500V Rating | 13 |
3-Phase kW (50 Hz) 690V Rating | 10 |
3-Phase HP (60 Hz) 230V Rating | 7.5 |
3-Phase HP (60 Hz) 460V Rating | 15 |
3-Phase HP (60 Hz) 575V Rating | 15 |
Rated Operating Current, AC-3 | 23A |
Coil Voltage | 24V DC Electronic Coil |
No. of Power Poles | 3 N.O. |
Coil Termination | Line Side |
Auxiliary Contact Configuration | 1 N.O. 4 N.C. |
Auxiliary Contact Type | Bifurcated Contact |
Opprinnelsesland | CH |
Tolltariffnummer | 85364190 |
Lengde | 19.507 |
Høyde | 10.998 |
Livssyklus | Active |
