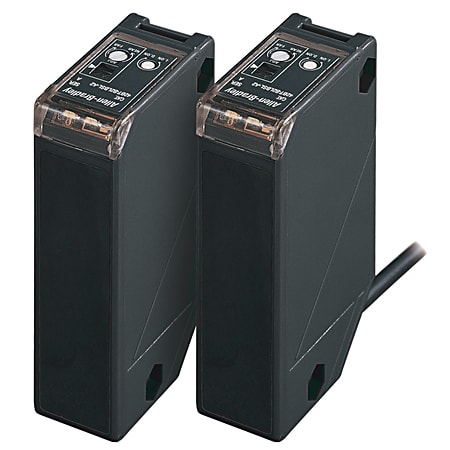

Side Through Hole Long Range BGS Sensor
Produktnummer: 42BT-B2LBSL-Y4
Produktstatus:
inkl. mva.
Long Range BGS Sensor, Side Through Hole, Background Suppression, Visible Red, 980.00 EA , Manually Adjustable, NPN & PNP W/ SCP, DC - LO or DO Selectable, 4 Pin DC Pico QD on Pigtail
Egenskaper for produkt/familie
- 80;889P-F4AB-5
| Spesifikasjoner | |
|---|---|
| Operating Voltage/Mode | DC - LO or DO selectable |
| Light Source | Visible Red LED |
| Sensing Mode | Background Suppression |
| Output Type | Both Sink (NPN) and Source (PNP) |
| Note | Note |
| Maximum Sensing Distance | 1m (3.3ft) |
| Connection Type | 4-pin Pico QD on 152mm (6in) pigtail |
| Sensing Range | 1m (3.3ft) |
| Output | Both Sink (NPN) and Source (PNP) |
| Voltage Rating | DC - LO or DO selectable |
| Sensing Beam | Visible Red LED |
| Connection | 4-pin Pico QD on 152mm (6in) pigtail |
| Connection Media | DC Pico(M8) ,Female ,Straight ,4-pin PVC, Yellow, Unshielded ,5 m |
| Lengde | 16.612 |
| Høyde | 2.997 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42bt-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D STEP Model (STP) Filnavn: 42bt-b1lbsn-f4 Filtype: application/x-zip-compressed |
Last ned | |
|
Photo Filnavn: PHEL42BT_PH.jpg Filtype: image/png |
Last ned | |
|
2D Dimension Drawing (DWG/DXF) Filnavn: 42BT.dwg Filtype: image/vnd.dwg |
Last ned |
