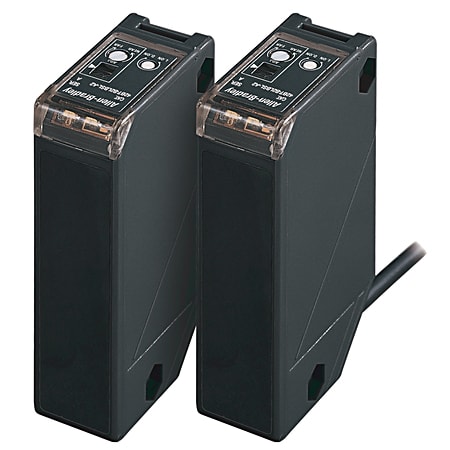

Side Through Hole Long Range BGS Sensor
Produktnummer: 42BT-B2LBSL-F4
Produktstatus:
inkl. mva.
Long Range BGS Sensor, Side Through Hole, Background Suppression, Visible Red, 980.00 EA , Manually Adjustable, NPN & PNP W/ SCP, DC - LO or DO Selectable, 4 Pin Micro QD on Pigtail
Egenskaper for produkt/familie
- 80;889D-F4AC-5
- Adjustable range settings
- Both NPN and PNP outputs
- Long range background suppression diffuse sensing mode
- Slim flatpack housing design
- Fast 2 ms response time
- Highly visible status Indicators
- Short-circuit protected outputs
| Spesifikasjoner | |
|---|---|
| Connection Type | 4-pin DC Micro QD on 152mm (6in) pigtail |
| Light Source | Visible Red LED |
| Sensing Mode | Background Suppression |
| Maximum Sensing Distance | 1m (3.3ft) |
| Note | Note |
| Output Type | Both Sink (NPN) and Source (PNP) |
| Operating Voltage/Mode | DC - LO or DO selectable |
| Sensing Range | 1m (3.3ft) |
| Output | Both Sink (NPN) and Source (PNP) |
| Sensing Beam | Visible Red LED |
| Connection | 4-pin DC Micro QD on 152mm (6in) pigtail |
| Voltage Rating | DC - LO or DO selectable |
| Connection Media | DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
| Lengde | 16.002 |
| Høyde | 2.896 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 42bt-in001_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D STEP Model (STP) Filnavn: 42bt-b1lbsn-f4 Filtype: application/x-zip-compressed |
Last ned | |
|
2D Dimension Drawing (DWG/DXF) Filnavn: 42BT.dwg Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: PHEL42BT_PH.jpg Filtype: image/png |
Last ned |
