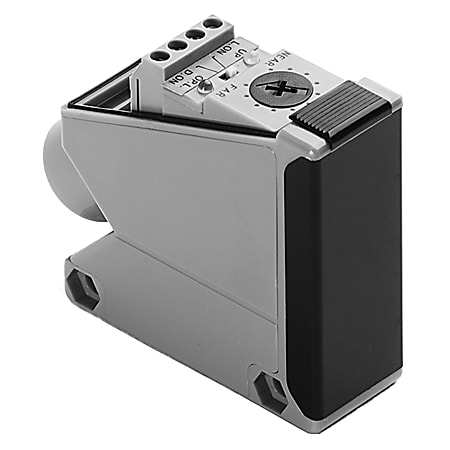

Side Through Hole Long Range BGS Sensor

Produktnummer: 42BC-B1LBAN-T4
Produktstatus:


inkl. mva.

Long Range BGS Sensor, Side Through Hole, Background Suppression, Infrared, 1800.00 EA , Manually Adjustable, NPN & PNP W/ SCP, DC - LO or DO Selectable, 4 Screw Terminal

Egenskaper for produkt/familie

  • Adjustable range settings
  • Screw terminal connections
  • Short-circuit protected outputs
  • Highly visible status Indicators
  • Slim housing style
  • Long range background suppression diffuse sensing mode
Spesifikasjoner
Sensing Range 2m (6.6ft)
Connection Screw Terminals
Sensing Beam Infrared
Output Both Sink (NPN) and Source (PNP)
Voltage Rating 12-24V DC - LO or DO selectable
Connection Type Screw Terminals
Maximum Sensing Distance 2m (6.6ft)
Output Type Both Sink (NPN) and Source (PNP)
Light Source Infrared
Operating Voltage/Mode 12-24V DC - LO or DO selectable
Sensing Mode Background Suppression
Lengde 11.405
Høyde 5.41
Livssyklus Active
