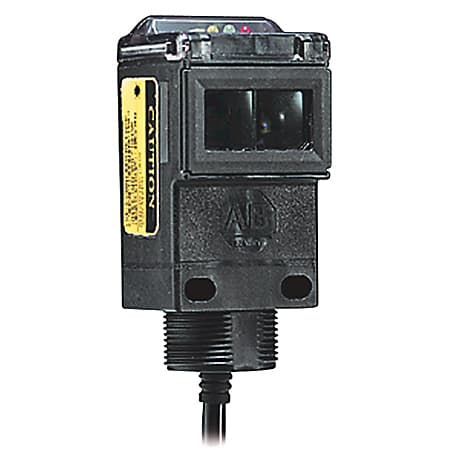

Series 9000 LaserSight Photo Sensor
Produktnummer: 42GRU-92L0-QD
Produktstatus:
inkl. mva.
Sensor, Photoelectric, Series 9000, Class 2 Laser, Polarized Retroreflective, 40-40 m Sensing Range, Light Operate - Dark OperateSelectable Output, NPN - PNP Output, 4 Pin Micro M12 Quick Disconnect Connector, Adjustable Sensitivity
Egenskaper for produkt/familie
- Selectable light/dark operate
- Micro, mini QD, 2 m cable connections
- Class I laser light source
- Robust 30 mm housing
- SPDT relay output (AC)
- Visible red beam for easy alignment
- Both NPN and PNP outputs (DC)
| Spesifikasjoner | |
|---|---|
| Product Type | LaserSight 9000 |
| Response Time | 500 ms |
| Sensing Mode | Polarized Retroreflective |
| Output Mode | LO or DO selectable |
| Operating Voltage / Output Type | 10-30V DC, NPN/PNP Transistor |
| Maximum Sensing Distance | 40m (130ft) |
| Connection Type | Micro Quick-Disconnect (DC) |
| Sensing Range | 40m (130ft) |
| Voltage Rating | 10-30V DC, NPN/PNP Transistor |
| Lengde | 25.273 |
| Høyde | 5.969 |
| Livssyklus | Active |
| Datablad | ||
|---|---|---|
|
Spec Sheet Filnavn: 9000-in005_-en-p.pdf Filtype: application/pdf |
Last ned |
| Nedlastinger | ||
|---|---|---|
|
3D STEP (STP) Model Filnavn: series9000_microqd Filtype: application/x-zip-compressed |
Last ned | |
|
Dimension Drawing (DXF/DWG) Filnavn: Series%209000.dwg Filtype: image/vnd.dwg |
Last ned | |
|
Photo Filnavn: 42GRP-92L2_Product-02_3C.jpg Filtype: image/png |
Last ned | |
|
Catalog Page Filnavn: Laser9K%20Catalog%20Pages.pdf Filtype: application/pdf |
Last ned |
